SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Door/drawer (series 24)
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:

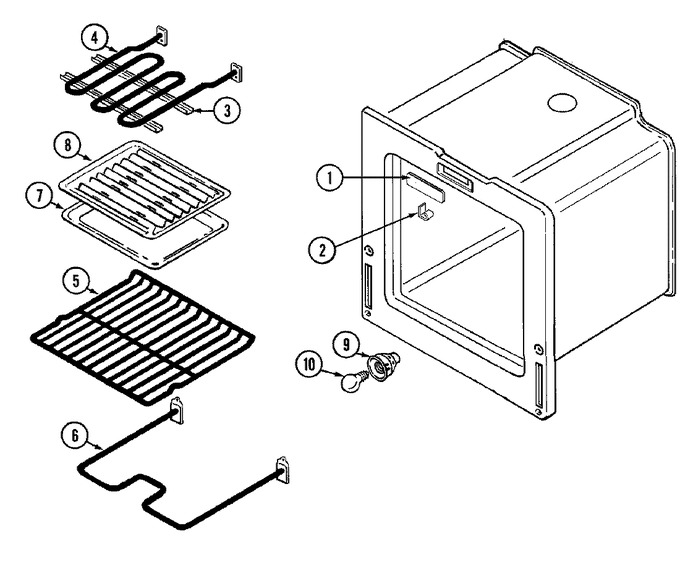

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7718P013-60 | Cover, Door Lock | 01 |
|
- | ||||
| 2 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 3 | 3807F389-45 | Support, Element | 01 |
|
- | ||||
| 3 | W11772394 | Screw (Replaces: 7101P300-60) | 01 |
|
Immediately | $ 10.94 | |||
| 4 | 7406P072-60 | Element, Broil | 01 |
|
- | ||||
| 5 | WPW10282492 | Rack, Oven (Replaces: 7801P047-60) | 01 |
|
$ 65.15 | ||||
| 6 | UB870 | Element, Bake (Replaces: 7406P092-60) | 01 |
|
Immediately | $ 44.96 | |||
| 7 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 8 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 9 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 01 |
|
Immediately | $ 66.10 | |||
| 10 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 01 |
|
Immediately | $ 16.80 |
