SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Wiring Harness

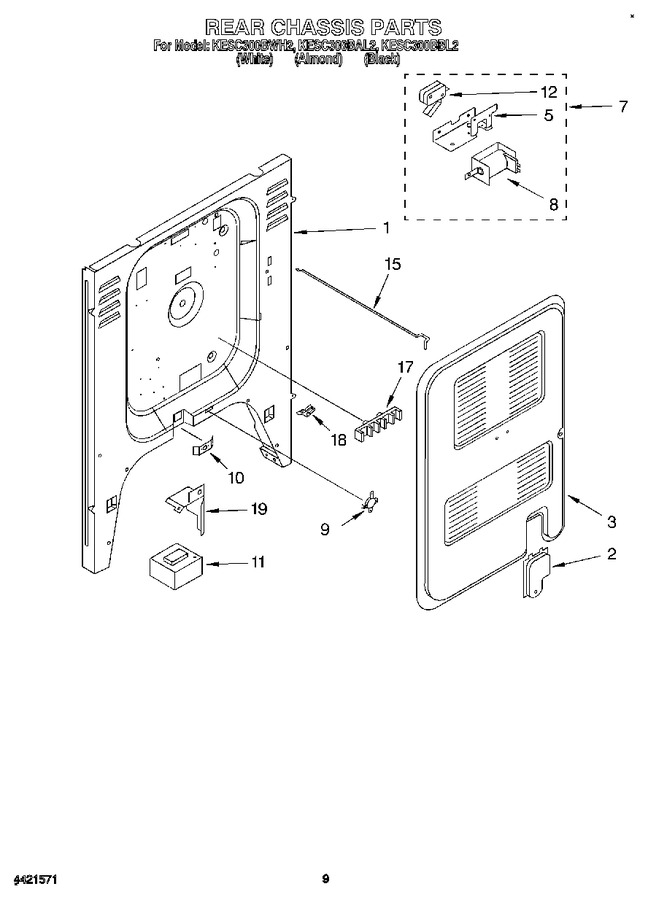

07 - Rear Chassis, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211813		Screw, (4)		Appelez-nous	-
1	9751051		Rear, Chassis		Appelez-nous	-
2	9780265		Screw, (1) 10 X 3/8		Appelez-nous	-
2	9750490		Cover, Rear Access		Appelez-nous	-
3	9751354		Panel, Rear Cover		Appelez-nous	-
3	4211813		Screw, (2) 10 X 3/8		Appelez-nous	-
5	9751418		Bracket, Lock		Appelez-nous	-
5	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
7	9751439		Oven Lock Assembly		Appelez-nous	-
7	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
8	9751590		Solenoid		Appelez-nous	-
8	4211945		Screw, (2) 10-32 X 5/16		Appelez-nous	-
8	4211875		Washer		Appelez-nous	-
9	9780265		Screw, 10x3/8 (2)		Appelez-nous	-
9	3149652		Fuse, Safety		Appelez-nous	-
10	9780265		Screw, 10x3/8 (2)		Appelez-nous	-
10	9750491		Bracket, Power Cord		Appelez-nous	-
11	340184		Screw 10-16 X 11/2				$ 12.10
11	312804		Block, Balance		Appelez-nous	-
12	9751763		Switch, Interlock		Appelez-nous	-
12	9750888		Nut (2)		Appelez-nous	-
12	9750887		Screw, (2)		Appelez-nous	-
15	9750523		Rod, Lock		Appelez-nous	-
17	WP112432		Nut, Brass (3) (power Cord)   (Replaces: 4319494)				$ 7.16
17	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
17	98884		Screw, (2) 10-16 X 1		Appelez-nous	-
18	308498		Ground Strap		Appelez-nous	-
18	WP112432		Screw, Grounding   (Replaces: 4319494)				$ 7.16
18	313660		Clip, (1)		Appelez-nous	-
19	261891		Harvest Gold (uncut)		Appelez-nous	-
19	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
19	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
19	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
19	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
19	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
19	350942		Primer (white)   (Replaces: 206922)				$ 80.69
19	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
19	978883		Almond (uncut)		Appelez-nous	-
19	CERAMABRYTE		Cleaner, Glass   (Replaces: 814009)			Immediately	$ 9.95
19	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
19	285368		Platinum (uncut)		Appelez-nous	-
19	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
19	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
19	261582		Grease		Appelez-nous	-
19	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
19	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
19	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
19	9751798		Vent, Back		Appelez-nous	-
19	9780265		Screw (2) No.10 X 3/8 Blk.		Appelez-nous	-
19	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
19	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
19	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
19	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
19	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
19	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
19	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
19	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
19	242831		Wire (14 Ga. 200 C Red)				$ 342.23
19	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
19	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
19	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
19	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
19	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
19	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
19	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
19	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
19	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
19	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
19	261888		New Avocado		Appelez-nous	-
19	261886		Coffee		Appelez-nous	-
19	261890		Harvest Gold		Appelez-nous	-
19	285365		Toast		Appelez-nous	-
19	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
