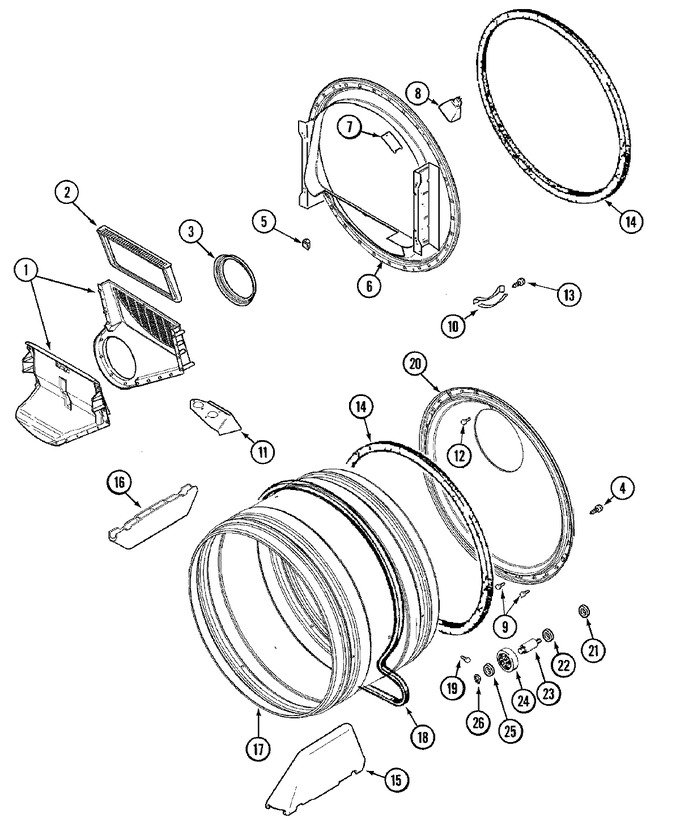

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33001799 | Outlet Duct Assembly | 10 |
|
$ 81.40 | ||||
| 2 | WP33001808 | Filter, Lint (Replaces: 33001808) | 10 |
|
Immediately | $ 54.12 | |||
| 3 | 33002560 | Seal, Blower | 10 |
|
- | ||||
| 4 | 33002190 | Screw (no.10-3/8``) | 10 |
|
- | ||||
| 5 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 6 | 33001868 | Front, Tumbler Front W/sensor | 10 |
|
- | ||||
| 6 | 33001809 | Sensor Bar Assy. |
|
- | |||||
| 7 | 33001869 | Lens, Drum Light | 10 |
|
- | ||||
| 7 | WP33002917 | Screw (hex Head) (Replaces: 33001855) | 10 |
|
Immediately | $ 6.90 | |||
| 8 | WP22002263 | Lamp (10 Watt) (Replaces: 22002263) | 10 |
|
Immediately | $ 12.29 | |||
| 8 | 33001870 | Holder, Lamp (w/housing) | 10 |
|
- | ||||
| 9 | WP90767 | Screw (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 10 | 306508 | Tumbler Bearing Kit | 10 |
|
Immediately | $ 20.77 | |||
| 11 | 33001837 | Cover, Thermostat (elec Only) | 10 |
|
- | ||||
| 12 | 210932 | Screw, No.8 X 9/16 Ctsk | 10 |
|
- | ||||
| 13 | WP210720 | Rivet (Replaces: 210720) | 10 |
|
$ 12.14 | ||||
| 14 | WP33001807 | Seal, Tumbler (Replaces: 33001807) | 10 |
|
Immediately | $ 21.39 | |||
| 15 | WP33002032 | Baffle (tall) (Replaces: 33001756) | 10 |
|
Immediately | $ 37.95 | |||
| 16 | WP33001755 | Baffle (short) (Replaces: 33001755) | 10 |
|
Immediately | $ 30.85 | |||
| 17 | 33001889 | Tumbler | 10 |
|
$ 325.04 | ||||
| 18 | WP33002535 | V-belt (tumbler) (Replaces: 33002535) | 10 |
|
Immediately | $ 30.78 | |||
| 19 | 33001788 | Screw, Baffle | 10 |
|
- | ||||
| 20 | 33002779 | Tumbler Back & Seal As-pack | 10 |
|
- | ||||
| 21 | WP33001443 | Nut, Hex (roller Shaft) (Replaces: 33001443) | 10 |
|
$ 7.15 | ||||
| 22 | WPY312527 | Washer, Idler Shaft (qty-1) (Replaces: Y312527) | 10 |
|
Immediately | $ 10.01 | |||
| 23 | Y312948 | Shaft, Tumbler Roller | 10 |
|
- | ||||
| 24 | 12001541 | Bearing & Roller Assembly (Replaces: Y303373) | 10 |
|
Immediately | $ 27.92 | |||
| 25 | WP312535 | Washer, Roller Shaft (Replaces: 312535) | 10 |
|
Immediately | $ 10.25 | |||
| 26 | WP9703438 | Ring, Retaining (Replaces: 410233) | 10 |
|
Immediately | $ 3.81 |
