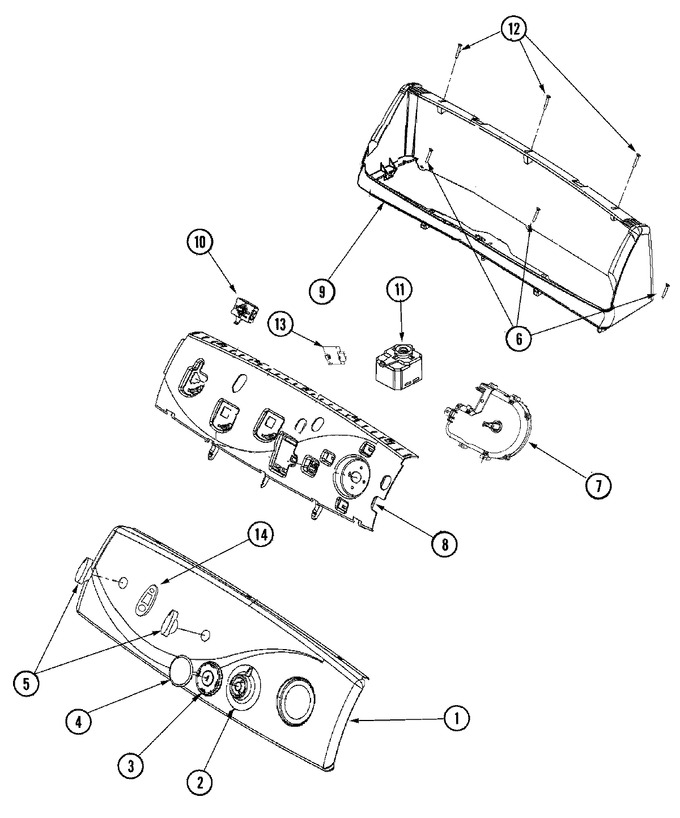

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33002830 | Graphic Control Facia (wht) | 10 |
|
- | ||||
| 2 | 22003953 | Timer Dial Skirt (wht) | 10 |
|
- | ||||
| 3 | WP22003993 | Timer Knob (blue) (wht) (Replaces: 22003993) | 10 |
|
$ 24.15 | ||||
| 4 | WP22003989 | Timer Cap (chrome) Wht (Replaces: 22003989) | 10 |
|
Immediately | $ 41.84 | |||
| 5 | WP22003987 | Control Knob (chrome) Wht (Replaces: 22003987) | 10 |
|
$ 52.45 | ||||
| 6 | WP33002917 | Screw (hex Head) (Replaces: 33001855) | 10 |
|
Immediately | $ 6.90 | |||
| 7 | 33002748 | Timer | 10 |
|
- | ||||
| 7 | 33002803 | Timer | 16 |
|
$ 193.55 | ||||
| 8 | 33002738 | Dryer Switch Support | 10 |
|
$ 38.34 | ||||
| 9 | 22003960 | Console Housing (wht) | 10 |
|
- | ||||
| 10 | 33002725 | 4 Pos. Rotary Temp. Switch | 10 |
|
$ 80.13 | ||||
| 11 | 33002736 | On.off Switch | 10 |
|
$ 41.67 | ||||
| 12 | 22003938 | Screw, Oval Ctsk Hd No.8 | 10 |
|
- | ||||
| 13 | 33002734 | 3 Light Dryness Display | 10 |
|
$ 77.19 | ||||
| 13 | 33002905 | Sensor Assy (chime & Dryness) | 20 |
|
$ 48.71 | ||||
| 14 | 33002747 | Lens Carrier Assembly (bsq) | 10 |
|
- | ||||
| 14 | 33002746 | Lens Carrier Assembly (wht) | 10 |
|
- |
