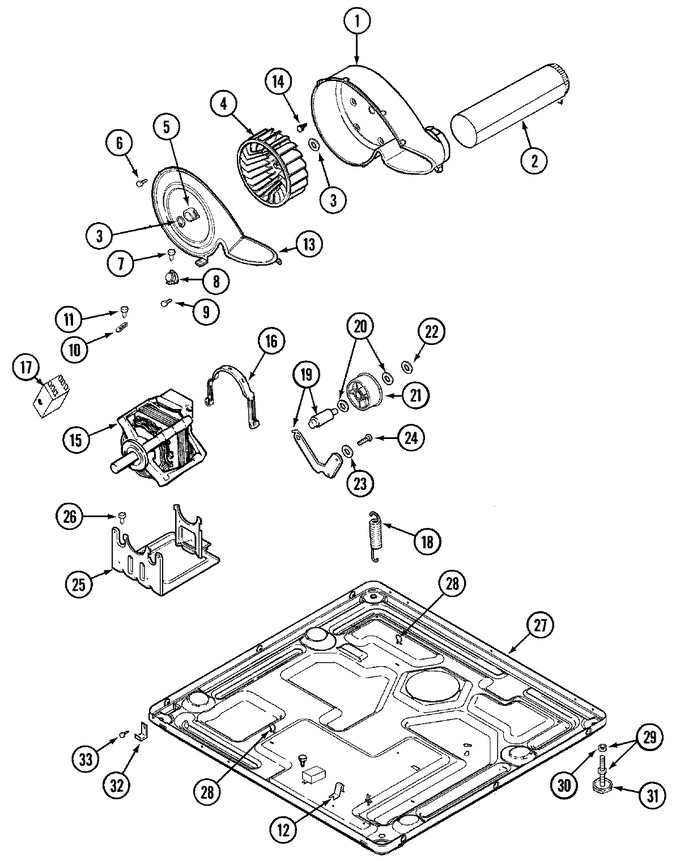

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP33001789 | Housing, Blower (Replaces: 33001789) | 10 |
|
$ 128.00 | ||||
| 2 | 33001800 | Duct Assy., Exhaust | 10 |
|
- | ||||
| 2 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | WP9703438 | Ring, Retaining (Replaces: 410233) | 10 |
|
Immediately | $ 3.81 | |||
| 4 | 33001790 | Wheel, Blower | 10 |
|
Immediately | $ 44.73 | |||
| 4 | WP33002797 | Wheel, Blower (Replaces: 33002797) | 55 |
|
Immediately | $ 93.13 | |||
| 5 | WP312967 | Clamp, Blower Housing (Replaces: 312967) | 10 |
|
Immediately | $ 10.68 | |||
| 6 | WP33002917 | Screw (hex Head) (Replaces: 33001855) | 10 |
|
Immediately | $ 6.90 | |||
| 7 | Y313561 | Screw----na | 10 |
|
$ 5.27 | ||||
| 8 | 307208 | Thermistor, Temp. Control | 10 |
|
$ 41.88 | ||||
| 8 | WP694674 | Thermostat, Cycling (limit) (Replaces: 33002567) | 10 |
|
Immediately | $ 45.46 | |||
| 9 | WP489128 | Screw (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 10 | WP33001762 | Fuse, Thermal (w` Bracket) (Replaces: 33001762) | 10 |
|
Immediately | $ 49.84 | |||
| 11 | WP90767 | Screw (Replaces: 314848) | 10 |
|
Immediately | $ 7.04 | |||
| 12 | 22002244 | Clip, Grounding | 10 |
|
- | ||||
| 13 | 33001796 | Cover, Blower Housing | 10 |
|
- | ||||
| 14 | 314818 | Screw | 10 |
|
- | ||||
| 15 | WP33002795 | Motor, Drive 60hz (Replaces: 33002795) | 55 |
|
Immediately | $ 229.65 | |||
| 15 | W10410997 | Motor (Replaces: 33002478) | 10 |
|
Immediately | $ 165.38 | |||
| 16 | WPY015825 | Clip, Motor (Replaces: Y015825) | 10 |
|
$ 21.03 | ||||
| 17 | W10410997 | Switch, Motor (Replaces: 33001854) | 10 |
|
Immediately | $ 165.38 | |||
| 18 | 33002459 | Spring, Idler (Replaces: 33002460) | 10 |
|
$ 6.94 | ||||
| 18 | 33002461 | Plug For Spring | 10 |
|
- | ||||
| 19 | WP6-3705180 | Idler Arm & Shaft Assy. (Replaces: 33001840) | 10 |
|
Immediately | $ 44.32 | |||
| 20 | WPY312527 | Washer, Idler Shaft (qty-1) (Replaces: Y312527) | 10 |
|
Immediately | $ 10.01 | |||
| 21 | WP6-3700340 | Bearing, Idler Assembly (Replaces: 33001783) | 10 |
|
Immediately | $ 24.98 | |||
| 22 | WP354987 | Retaining Ring, Idler Shaft (Replaces: 312958) | 10 |
|
Immediately | $ 10.58 | |||
| 23 | WP315772 | Sleeve, Idler Arm (Replaces: 315772) | 10 |
|
Immediately | $ 10.39 | |||
| 24 | WPY014874 | Screw (Replaces: Y014874) | 10 |
|
$ 6.98 | ||||
| 25 | Y313561 | Screw----na | 10 |
|
$ 5.27 | ||||
| 25 | 33002466 | Support, Motor | 10 |
|
- | ||||
| 26 | Y313561 | Screw----na | 10 |
|
$ 5.27 | ||||
| 27 | 33002622 | Base, (lwr) | 36 |
|
- | ||||
| 27 | 33002465 | Base, (lwr)----na | 38 |
|
- | ||||
| 27 | 33002465 | Base, (lwr)----na | 10 |
|
- | ||||
| 28 | 410490 | Spring, Wire Harness | 10 |
|
- | ||||
| 29 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 10 |
|
$ 7.16 | ||||
| 30 | WP62739 | Nut (Replaces: Y052740) | 10 |
|
$ 6.85 | ||||
| 31 | Y314137 | Foot, Rubber | 10 |
|
$ 14.08 | ||||
| 32 | 22002239 | Clip, Lower Front Panel | 10 |
|
$ 5.84 | ||||
| 33 | Y310632 | Screw | 10 |
|
- |
