01 - Cabinet-rear
02 - Control Panel & Cabinet
03 - Door
04 - Heater
05 - Motor Drive
06 - Tumbler
07 - Wiring Information
08 - Wiring Informaton (at Series 34)
SELECT A DIAGRAM
New Model Search:

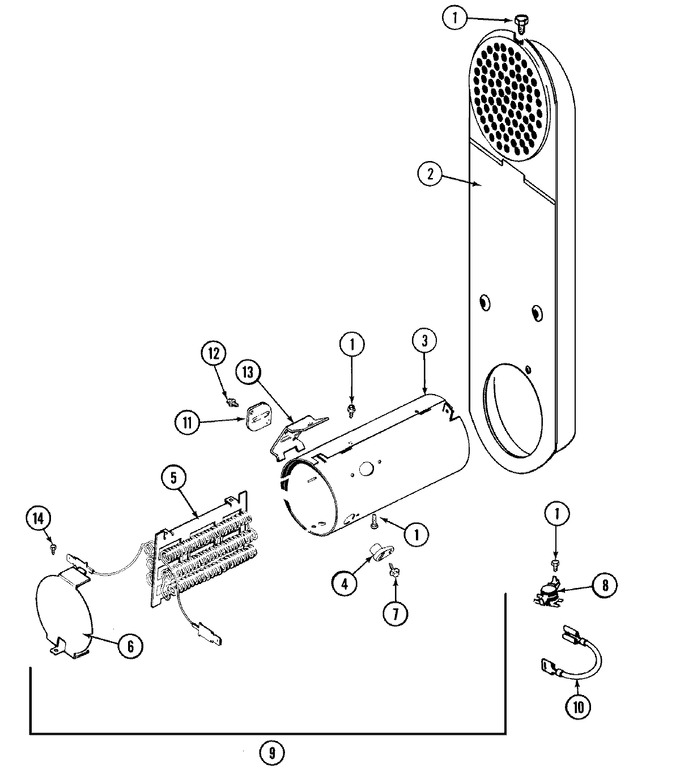

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | 33001803 | Duct Assy., Inlet | 10 |
|
- | ||||
| 3 | 314995 | Heater Enclosure | 10 |
|
- | ||||
| 4 | 314998 | Insulator, Terminal | 10 |
|
$ 18.77 | ||||
| 5 | 306199 | Relay, Heater | 10 |
|
$ 42.40 | ||||
| 5 | WPY308612 | Heater Sub-assembly (240v) (Replaces: 307184) | 10 |
|
Immediately | $ 260.46 | |||
| 6 | 314999 | Shield, Radiant | 10 |
|
- | ||||
| 7 | 314554 | Screw | 10 |
|
- | ||||
| 8 | WP303396 | Thermostat, Hi-limit (elec) (Replaces: 303396) | 10 |
|
Immediately | $ 44.02 | |||
| 9 | WP307178 | Heater Assembly(complete 240v) (Replaces: 307178) | 10 |
|
$ 369.81 | ||||
| 10 | WPY307173 | Wire, Jumper (Replaces: Y307173) | 10 |
|
$ 6.47 | ||||
| 11 | WP307473 | Fuse, Thermal (Replaces: 307473) | 10 |
|
Immediately | $ 55.22 | |||
| 12 | WP90767 | Screw, End Of Cycle----na (Replaces: 33001860) | 10 |
|
Immediately | $ 7.04 | |||
| 13 | 315346 | Bracket, Thermal Fuse | 10 |
|
- | ||||
| 14 | WP489128 | Screw (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 15 | Y308590 | Conversion Kit (240v To 208v) | 10 |
|
- |
