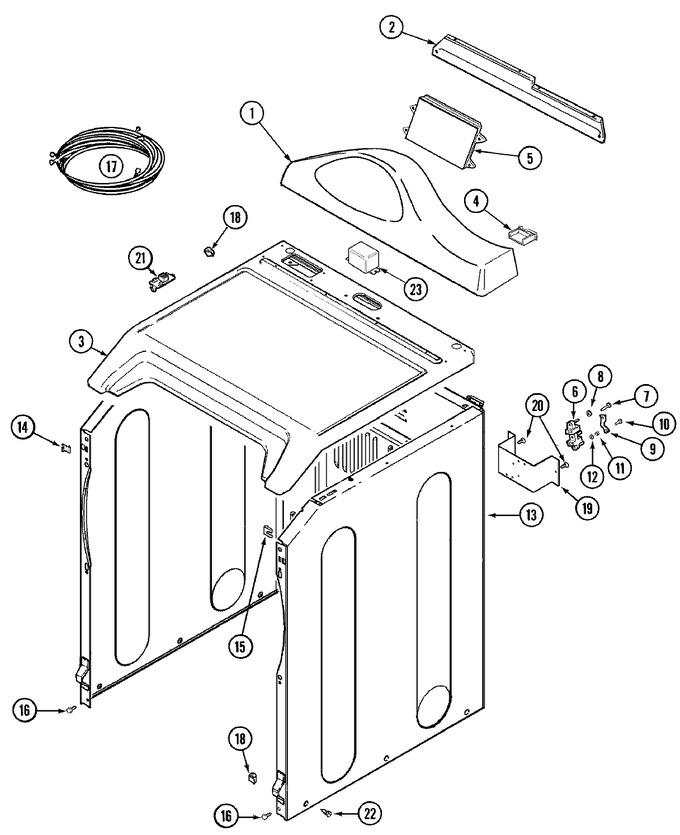

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003806 | Medallion, Console (wht) | 10 |
|
- | ||||
| 1 | 22004443 | Lcd Console Assy-bsq - As Pack | 69 |
|
$ 53.98 | ||||
| 1 | 22003807 | Medallion, Console (bsq) | 10 |
|
- | ||||
| 1 | 22003241 | Console, Lcd W/membrane (bsq) | 10 |
|
- | ||||
| 2 | 22003255 | Panel, Back | 10 |
|
- | ||||
| 2 | 22003581 | Back, Console Panel | 36 |
|
- | ||||
| 2 | Y22002339 | Screw | 10 |
|
- | ||||
| 3 | 33002367 | Cover, Top (bsq) | 10 |
|
- | ||||
| 3 | 33002628 | Cover, Top (bsq-as Pk) | 36 |
|
- | ||||
| 4 | 22003323 | Cover, Console Plug (bsq) | 10 |
|
- | ||||
| 5 | 22002061 | Screw | 33 |
|
- | ||||
| 5 | 33002886 | Control Board Assy/lcd As Pk T | 67 |
|
- | ||||
| 5 | 33002684 | Control Board/lcd/touch | 43 |
|
- | ||||
| 5 | 33002799 | Control Board - Lcd As Pack | 53 |
|
- | ||||
| 5 | 33002799 | Control Board - Lcd As Pack | 45 |
|
- | ||||
| 5 | 33002716 | Control Board As Pack | 49 |
|
- | ||||
| 5 | 33002641 | Board, Control | 33 |
|
- | ||||
| 5 | 22002061 | Screw | 68 |
|
- | ||||
| 5 | 33002562 | Control Board/touchscreen(lcd) | 10 |
|
- | ||||
| 5 | 33002761 | Lcd Control Board Assembly | 61 |
|
- | ||||
| 6 | W11705611 | Block, Terminal (Replaces: 33001244) | 10 |
|
$ 87.34 | ||||
| 7 | W11164114 | Screw, No.10-24 X 3/4 Inch (Replaces: Y312209) | 10 |
|
$ 3.76 | ||||
| 8 | Y311270 | Washer, Terminal Block | 10 |
|
$ 8.75 | ||||
| 9 | Y312184 | Strap, Ground | 10 |
|
- | ||||
| 10 | W10850756 | Screw----na (Replaces: 33001245) | 10 |
|
$ 6.98 | ||||
| 11 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 10 |
|
$ 7.16 | ||||
| 12 | WP311093 | Washer, 7/32 Inch (Replaces: 311093) | 10 |
|
$ 7.25 | ||||
| 13 | W11573574 | Screw (Replaces: 22001995) | 36 |
|
Immediately | $ 12.62 | |||
| 13 | 22003583 | Cabinet, Assy. (bsq-as Pk) | 36 |
|
- | ||||
| 13 | 22003639 | Cabinet Assy. (wht As Pk) | 38 |
|
- | ||||
| 13 | 22003640 | Cabinet Assy. (bisque As Pk) | 38 |
|
- | ||||
| 13 | 22002659 | Cabinet Assy. (bsq) | 10 |
|
- | ||||
| 13 | 22003367 | Hinge, Plastic | 36 |
|
- | ||||
| 14 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 15 | 213280 | Front Panel Bracket/fastener | 10 |
|
- | ||||
| 16 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 17 | 33002801 | Wire Harness | 53 |
|
- | ||||
| 17 | 33002547 | Harness, Wire | 10 |
|
- | ||||
| 17 | 306199 | Relay, Heater |
|
$ 42.40 | |||||
| 17 | WP90767 | Screw, End Of Cycle----na (Replaces: 33001860) |
|
Immediately | $ 7.04 | ||||
| 17 | 33002615 | Harness, Wire | 34 |
|
- | ||||
| 17 | 33002615 | Harness, Wire | 61 |
|
- | ||||
| 18 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 21 | 33001872 | Pin, Locator | 10 |
|
- | ||||
| 22 | 213007 | Screw----na (Replaces: 22003409) | 36 |
|
$ 10.99 | ||||
| 22 | 213007 | Screw, Cabinet | 10 |
|
$ 10.99 | ||||
| 23 | 306199 | Relay, Heater | 10 |
|
$ 42.40 | ||||
| 24 | 63721610 | Manual, Use & Care | 10 |
|
- | ||||
| 24 | Y2201891 | Manual, Use & Care | 68 |
|
- | ||||
| 25 | 16009968 | Manual, Sloped-front Dryer | 10 |
|
- | ||||
| 26 | 33002579 | Guide, Energy | 10 |
|
- |
