SELECT A DIAGRAM

01 - Cooktop, Literature

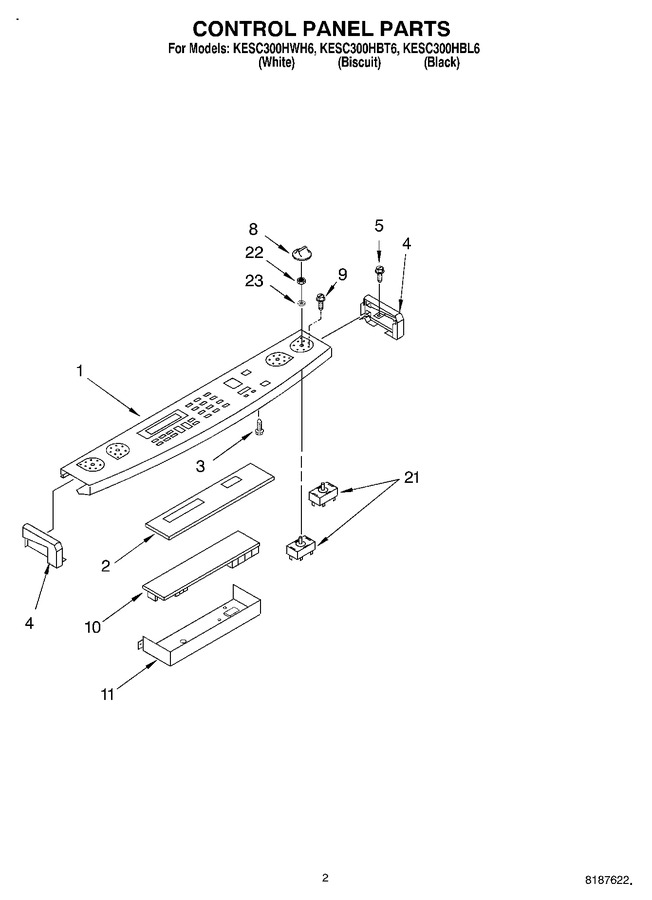

02 - Control Panel


03 - Door & Drawer


04 - Oven Chassis


05 - Oven


06 - Rear Chassis


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9754343CW		Console, Glass (assembly) (white)		Appelez-nous	-
1	9754343CC		Console, Glass (assembly) (biscuit)		Appelez-nous	-
1	9754343CB		Console, Glass (assembly) (black)		Appelez-nous	-
2	9754374		Microcptr		Appelez-nous	-
3	9780271		Screw, 8-18 X 1/4``		Appelez-nous	-
4	9751039FC		End Cap (left Hand) (biscuit)		Appelez-nous	-
4	9751039FB		(end Cap Left Hand) (black)		Appelez-nous	-
4	9751039FW		(end Cap Left Hand) (white)		Appelez-nous	-
4	9751040FB		End Cap Right Hand (black)		Appelez-nous	-
4	9751040FC		End Cap (right Hand) (biscuit)		Appelez-nous	-
4	9751040FW		End Cap (right Hand) (white)		Appelez-nous	-
5	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
8	WP9750372FF		Knobs, Control (4) (black)   (Replaces: 9750372FF)			Immediately	$ 18.86
8	WP9750372FC		Knobs, Control (4) (biscuit)   (Replaces: 9750372FC)			Immediately	$ 6.47
8	WP9750372FW		Knobs, Control (4) (white)   (Replaces: 9750372FW)				$ 17.99
9	9751871		Screw (2) No.10 Type B 1``		Appelez-nous	-
10	9754385		Microcptr		Appelez-nous	-
11	9755021		Shield, Control Panel		Appelez-nous	-
21	WP9755175		Switch, Infinite (1000-2400w, Lf)   (Replaces: 9755175)				$ 118.76
21	9751362		Switch, Infinite (2500w - Rr)				$ 72.53
21	9751363		Switch, Infinite (1800w, Rf)				$ 71.70
21	9751364		Switch, Infinite (1500w, Lr)				$ 72.83
22	00422610		Nut, Mounting   (Replaces: 422617)				$ 139.96
23	9781455		Seal, Switch (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
