Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 UT513 Element, Broil   (Replaces: 9750967) In-Stock Immediately $ 56.69

2 UB413 Element, Bake   (Replaces: 9750213) In-Stock Immediately $ 47.24

3 9781509 Screw, 8-32 X 3/8 Appelez-nous -
4 340184 Screw, 10-16 X 1 Special Order $ 12.10

15 40A15 Bulb, Light   (Replaces: 8935) In-Stock Immediately $ 1.98

16 W11594027 Socket, Light   (Replaces: 9781050) In-Stock Immediately $ 78.31

18 4396923 Grill, Broiler   (Replaces: 420104GM) In-Stock Immediately $ 52.04

19 4396923 Pan, Broiler   (Replaces: 420101GM) In-Stock Immediately $ 52.04

21 9750498 Rack, Standard Appelez-nous -
22 8053344 Sensor Special Order $ 58.13

23 WP9781049 Lens, Light   (Replaces: 9781049) In-Stock Immediately $ 71.93

24 WP3184533 Gasket, Light   (Replaces: 3184533) In-Stock Immediately $ 7.73

27 9780265 Screw, 10-16 X 3/8 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

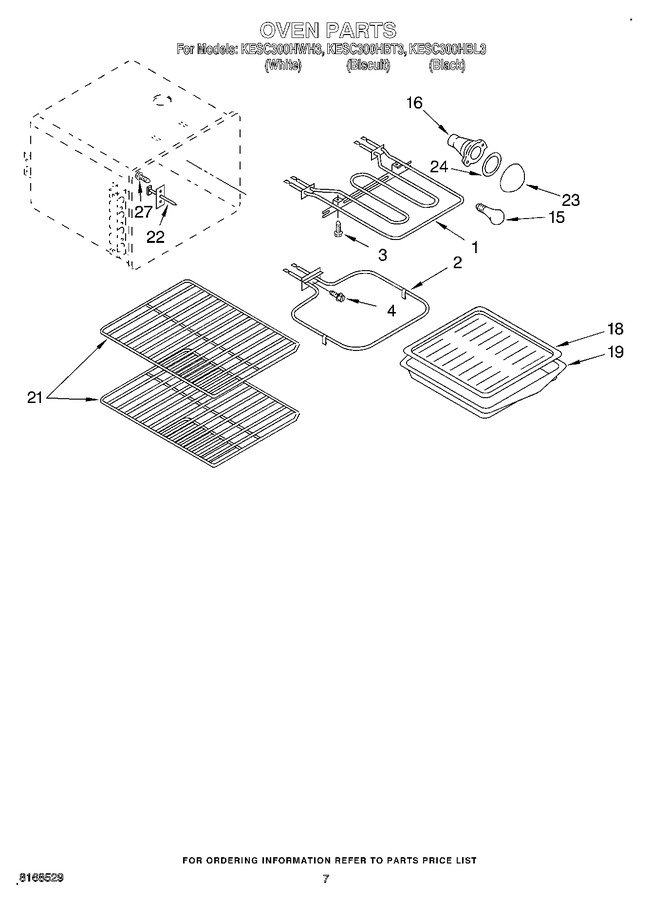

Diagram for KESC300HWH3
