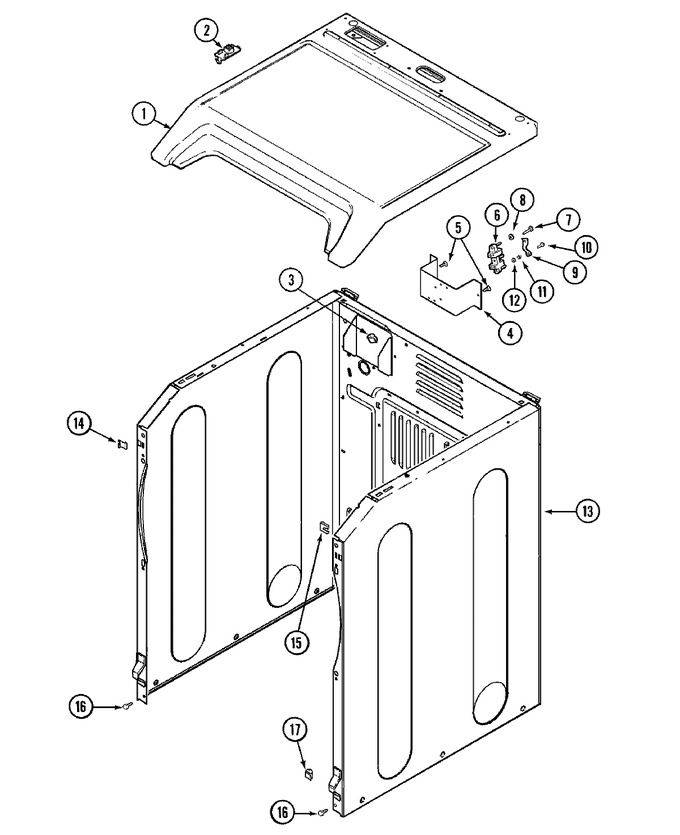

01 - Cabinet
02 - Cabinet-rear
03 - Control Panel
04 - Door
05 - Heater
06 - Motor Drive
07 - Supplemental Information
08 - Tumbler
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33002627 | Cover, Top (wht-as Pk) | 10 |
|
- | ||||
| 2 | 33001872 | Pin, Locator | 10 |
|
- | ||||
| 3 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 13 | 213007 | Screw, Cabinet | 10 |
|
$ 10.99 | ||||
| 13 | 22003582 | Cabinet, Assy. (wht-as Pk) | 10 |
|
- | ||||
| 14 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 15 | 213280 | Front Panel Bracket/fastener | 10 |
|
- | ||||
| 16 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 17 | Y310376 | Clip, Wire Harness | 10 |
|
- |
