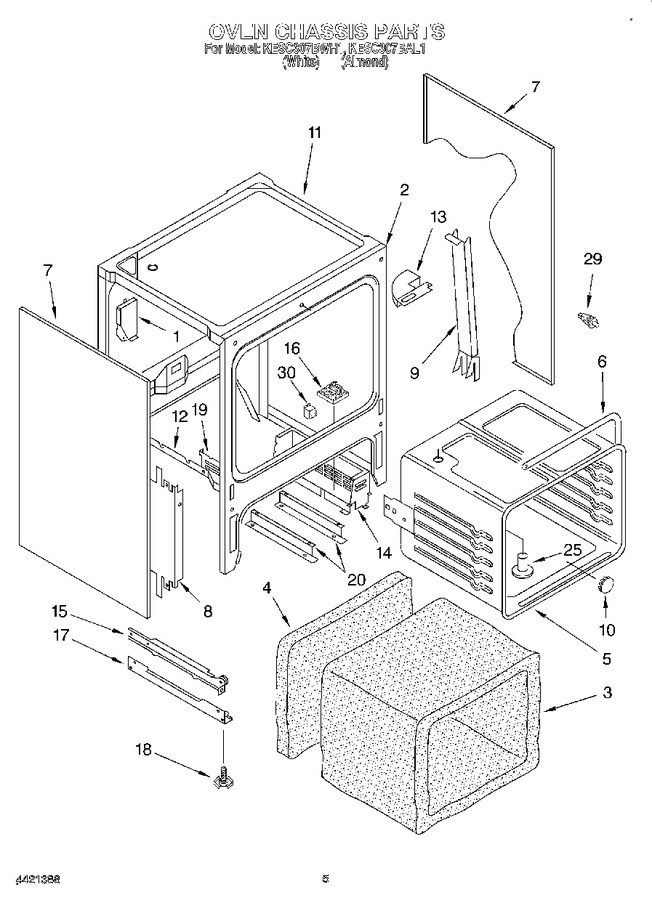

04 - Oven Chassis


05 - Oven


06 - Wiring Harness


07 - Rear Chassis, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9780265		Screw (6)		Appelez-nous	-
1	9751350		Vent Box, Oven		Appelez-nous	-
2	4212002		Chassis, Front		Appelez-nous	-
3	9750222		Insulation, Wrap		Appelez-nous	-
4	9750221		Insulation, Rear		Appelez-nous	-
5	9781292GM		Oven Liner		Appelez-nous	-
6	9750247		Gasket Oven		Appelez-nous	-
7	4211896		Oven , Side L Or R (white)		Appelez-nous	-
7	4211897		Oven , Side L Or R (almond)		Appelez-nous	-
7	9780265		Oven , Side L Or R (screw (4) 10 X 3/8)		Appelez-nous	-
8	9780265		Screw (2)		Appelez-nous	-
8	9780664		Shield, Insulation		Appelez-nous	-
9	9751789		Duct, Side Fan		Appelez-nous	-
9	9780265		Screw, (4)		Appelez-nous	-
11	9751166		Burner Box		Appelez-nous	-
11	9780275		Screw, (2) 8 X 3/8		Appelez-nous	-
11	9780265		Screw (7) 10 X 3/8		Appelez-nous	-
12	9780265		Screw (9) 10 X 3/8		Appelez-nous	-
12	9750142		Oven Bottom		Appelez-nous	-
13	9751653		Duct, Top		Appelez-nous	-
13	9780265		Screw (2)		Appelez-nous	-
14	9751060		Support, Fan		Appelez-nous	-
15	9750224		Rail, Drawer (right)		Appelez-nous	-
15	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
15	9750223		Drawer Rail, Left 10 X 3/8		Appelez-nous	-
16	9751020		Motor, Fan				$ 215.07
16	9751808		Screw, (3) No.8 X 1``		Appelez-nous	-
17	9780265		Screw, (8) 10 X 3/8		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9780270		Screw (2) 8 X 3/8		Appelez-nous	-
19	9750149		Hinge, Door L Or R		Appelez-nous	-
19	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
20	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
20	421771		Support Rail, Pan		Appelez-nous	-
25	9750736		Vent Tube		Appelez-nous	-
29	9750897		Door Switch		Appelez-nous	-
30	9751745		Anti-tip Kit				$ 19.35
30	9780265		Screw (2)		Appelez-nous	-
30	WA906B		Scrapper, Glass   (Replaces: 3183488)			Immediately	$ 4.86
30	9751948		Relay, Doubler				$ 68.19
30	CERAMABRYTE		Glass Cleaner   (Replaces: 9780196)			Immediately	$ 9.95
