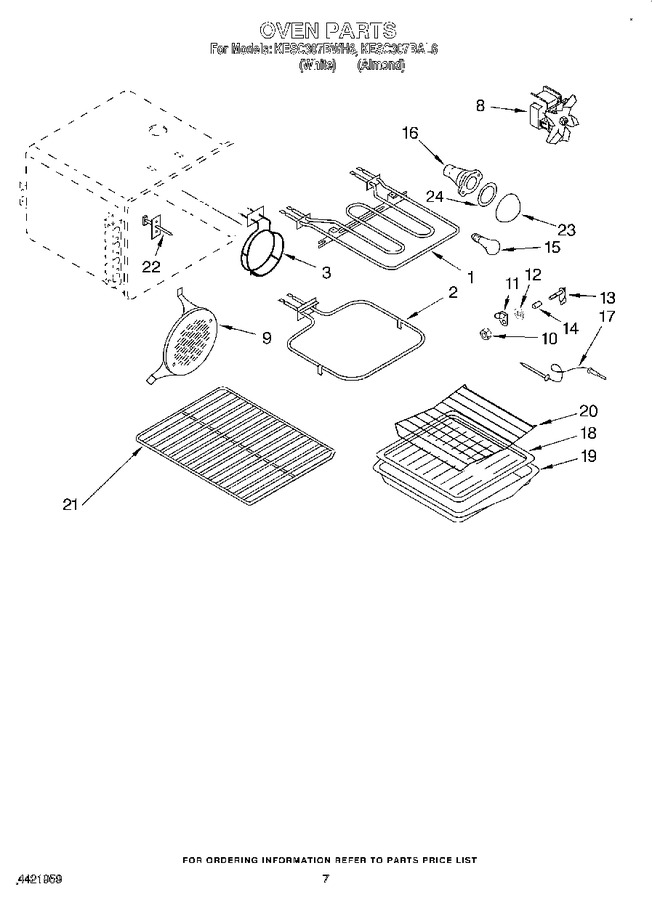

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	UT513		Element, Broil   (Replaces: 9750967)			Immediately	$ 56.69
2	UB413		Element, Bake   (Replaces: 9750213)			Immediately	$ 47.24
3	WPW10280189		Element, Convection   (Replaces: 9751447)				$ 295.73
3	9781509		Screw, Elements 8-32 X 3/8		Appelez-nous	-
8	9781543		Assembly, Fan				$ 142.09
8	9780272		Screw (3) 10 X 1/2		Appelez-nous	-
9	9751904GM		Baffle, Convection		Appelez-nous	-
10	4167277		Lock-nut, Cvr.jack		Appelez-nous	-
11	4167266		Jack Cover		Appelez-nous	-
12	4163975		Gasket		Appelez-nous	-
13	4173575		Receptacle, Probe		Appelez-nous	-
14	3179672		Spacer - Tubing		Appelez-nous	-
15	40A15		Bulb, Oven   (Replaces: 4211947)			Immediately	$ 1.98
16	W11594027		Socket, Light   (Replaces: 9781050)			Immediately	$ 78.31
17	3150144		Probe				$ 106.70
18	4396923		Grill, Broiler   (Replaces: 4421424)			Immediately	$ 52.04
19	4396923		Pan, Broiler   (Replaces: 4211944)			Immediately	$ 52.04
20	3181534		Rack, Roasting		Appelez-nous	-
21	9750823		Rack, Standard (3)		Appelez-nous	-
22	3148440		Sensor		Appelez-nous	-
22	9781509		Screw, (1) 8-32 X 3/8		Appelez-nous	-
23	WP9781049		Lens, Light   (Replaces: 9781049)			Immediately	$ 71.93
24	WP3184533		Gasket, Len`s   (Replaces: 3184533)			Immediately	$ 7.73
