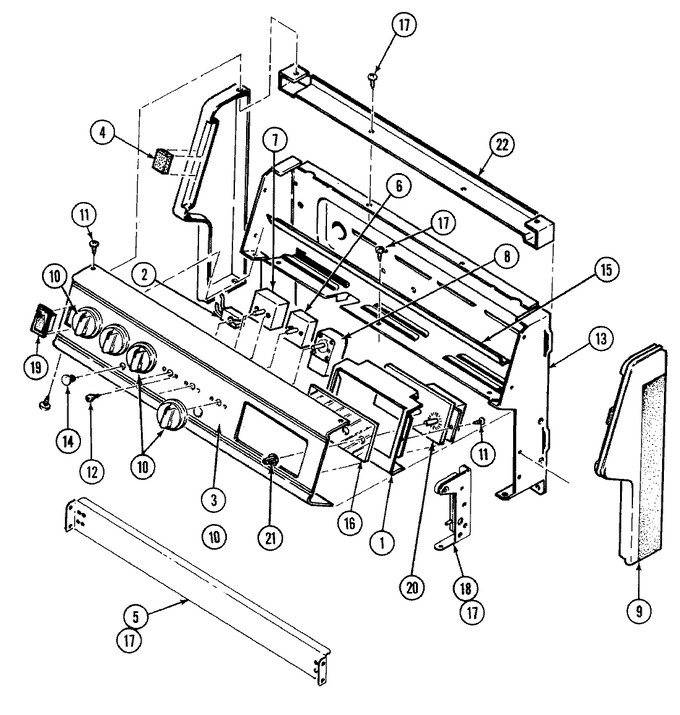

02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3801F317-45 | Bracket, Clock |
|
- | |||||
| 1 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) |
|
Immediately | $ 6.47 | ||||
| 2 | 7407P081-60 | Light, Indicator |
|
- | |||||
| 2 | W10852510 | Light, Indicator (Replaces: 7407P102-60) |
|
$ 106.11 | |||||
| 3 | 7703P298-60 | Panel, Control |
|
- | |||||
| 4 | 8010P085-60 | Spacer, Rubber |
|
- | |||||
| 5 | 3802F088-51 | Brace, Control Panel |
|
- | |||||
| 6 | 7403P254-60 | Switch |
|
- | |||||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) |
|
Immediately | $ 35.10 | ||||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) |
|
Immediately | $ 57.78 | ||||
| 8 | 7404P081-60 | Thermostat |
|
- | |||||
| 9 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) |
|
$ 7.68 | |||||
| 9 | 7726P046-60 | End Cap (rt-blk) |
|
- | |||||
| 9 | 7726P050-60 | End Cap (lt-blk) |
|
- | |||||
| 10 | 7737P028-60 | Knob, Infinite |
|
- | |||||
| 11 | WPY706189 | Screw (Replaces: 7118P019-60) |
|
Immediately | $ 6.47 | ||||
| 12 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 13 | 4001F091-51 | Housing, Control Panel |
|
- | |||||
| 14 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) |
|
Immediately | $ 12.62 | ||||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) |
|
$ 6.73 | |||||
| 15 | 3604F201-80 | Shield, Sight |
|
- | |||||
| 16 | 7201P056-60 | Gasket |
|
- | |||||
| 16 | 7902P109-60 | Glass, Clock |
|
- | |||||
| 17 | W11233072 | Screw, Housing (Replaces: 7118P015-60) |
|
Immediately | $ 12.62 | ||||
| 18 | 3418A087-34 | Hinge, Main Top (rt) |
|
- | |||||
| 18 | 3418A088-34 | Hinge, Main Top (lt) |
|
- | |||||
| 19 | 7403P067-60 | Switch, Rocker (blk) |
|
$ 91.35 | |||||
| 20 | 7601P170-60 | Clock |
|
- | |||||
| 21 | 7711P007-60 | Knob, Clock |
|
- | |||||
| 22 | 5125A314-60 | Wire, Loose |
|
- | |||||
| 22 | 4001F064-51 | Extension, Control Panel |
|
- | |||||
| 23 | 8113P021-60 | Manual, Use & Care |
|
- | |||||
| 23 | 16000329 | Guide, Quick Ref. - Magic Chef |
|
- |
