SELECT A DIAGRAM

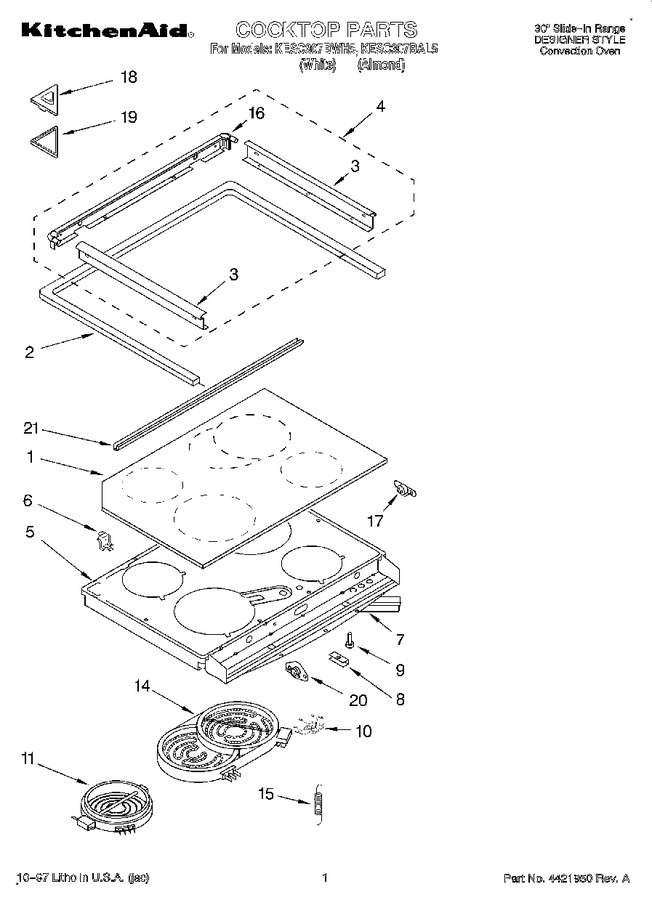

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Rear Chassis, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751752		Cooktop, Ceran (white)		Appelez-nous	-
1	9751753		Cooktop, Ceran (almond)		Appelez-nous	-
2	WP9780939		Gasket, Cooktop (front & Sides)   (Replaces: 9780939)			Immediately	$ 60.83
3	9751440PW		Trim, Side (white)		Appelez-nous	-
3	9751440PT		Trim, Side (almond)		Appelez-nous	-
4	4421430		Frame, Cooktop (white)		Appelez-nous	-
4	4421431		Frame, Cooktop (almond)		Appelez-nous	-
5	9781465		Support, Element		Appelez-nous	-
6	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
6	9752003		Washer (2)		Appelez-nous	-
6	9751629		Bracket, Pivot		Appelez-nous	-
7	422404		Brace, Support		Appelez-nous	-
7	WP3387230		Screw (2) 10 X 3/4``   (Replaces: 9780273)			Immediately	$ 7.69
8	9750821		Support Clips (4)		Appelez-nous	-
8	9751871		Screw, (4) 10 X 3/4		Appelez-nous	-
9	238614		Bumper, Rubber (white (4))   (Replaces: 9750969)				$ 72.68
9	238614		Bumper, Rubber (black (4))   (Replaces: 9780771)				$ 72.68
10	9781497		Hot Light		Appelez-nous	-
11	3189894		Element, Surface (160 Mm - Lr)		Appelez-nous	-
11	3189895		Element, Surface (180 Mm - Rf)		Appelez-nous	-
11	3189897		Element, Surface (230 Mm - Lf)		Appelez-nous	-
14	9752233		Dual Element, Rr		Appelez-nous	-
15	9781211		Spring		Appelez-nous	-
16	9752045PT		Trim, Back (includes End Caps) (almond)		Appelez-nous	-
16	9752045PW		Trim, Back (includes End Caps) (white)		Appelez-nous	-
17	9780265		Screw (2)		Appelez-nous	-
17	341196		Thermo-disc				$ 33.17
18	9751800		Cover, Vent		Appelez-nous	-
19	9751841		Gasket, Vent		Appelez-nous	-
20	WP9759944		Bimetal, Fan   (Replaces: 9751984)			Immediately	$ 121.57
21	9751478		Gasket, Console		Appelez-nous	-
