01 - Cooktop, Literature

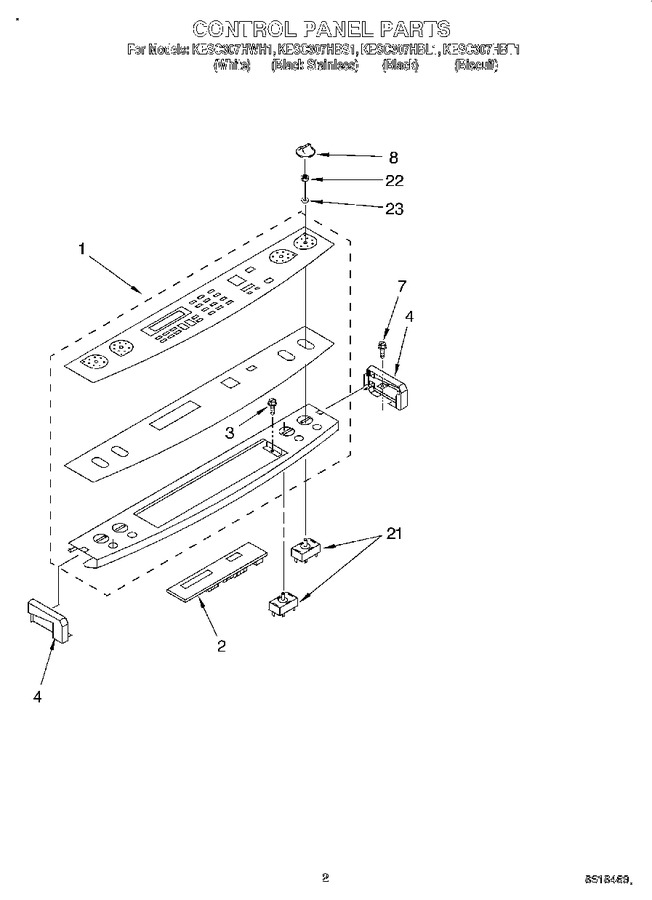

02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Rear Chassis
07 - Hidden Bake, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9753896CW | Console, Glass (white) |
|
- | |||||
| 1 | 9753896CB | Console, Glass (black) |
|
- | |||||
| 1 | 9753896CC | Console, Glass (biscuit) |
|
- | |||||
| 2 | 3191106 | Timer, Electronic |
|
- | |||||
| 3 | 9780271 | Screw, 8-18 X 1/4`` |
|
- | |||||
| 4 | 9751039FB | (end Cap Left Hand) (black) |
|
- | |||||
| 4 | 9751039FW | (end Cap Left Hand) (white) |
|
- | |||||
| 4 | 9751040FC | End Cap (right Hand) (biscuit) |
|
- | |||||
| 4 | 9751040FB | End Cap Right Hand (black) |
|
- | |||||
| 4 | 9751040FW | End Cap (right Hand) (white) |
|
- | |||||
| 4 | 9751039FC | End Cap (left Hand) (biscuit) |
|
- | |||||
| 7 | 9780265 | Screw, 10-16 X 3/8 |
|
- | |||||
| 8 | WP9750372FF | Knobs, Control (black) (Replaces: 9750372FF) |
|
Immediately | $ 18.86 | ||||
| 8 | WP9750372FC | Knobs, Control (biscuit) (Replaces: 9750372FC) |
|
Immediately | $ 6.47 | ||||
| 8 | WP9750372FW | Knobs, Control (white) (Replaces: 9750372FW) |
|
$ 17.99 | |||||
| 21 | 9751364 | Switch, Infinite (1500w, Lr) |
|
$ 72.83 | |||||
| 21 | 9751362 | Switch, Infinite (2200w, Rr) |
|
$ 72.53 | |||||
| 21 | 9751363 | Switch, Infinite (1800w, Rf) |
|
$ 71.70 | |||||
| 21 | 8203536 | Switch, Infinite (1000-2400w, Lf) (Replaces: 9751758) |
|
Immediately | $ 183.74 | ||||
| 22 | 9751711 | Nut, Mounting (dual Element) |
|
- | |||||
| 22 | 00422610 | Nut, Mounting (single Element) (Replaces: 422617) |
|
$ 139.96 | |||||
| 23 | 9781455 | Seal, Switch (4) |
|
- |
