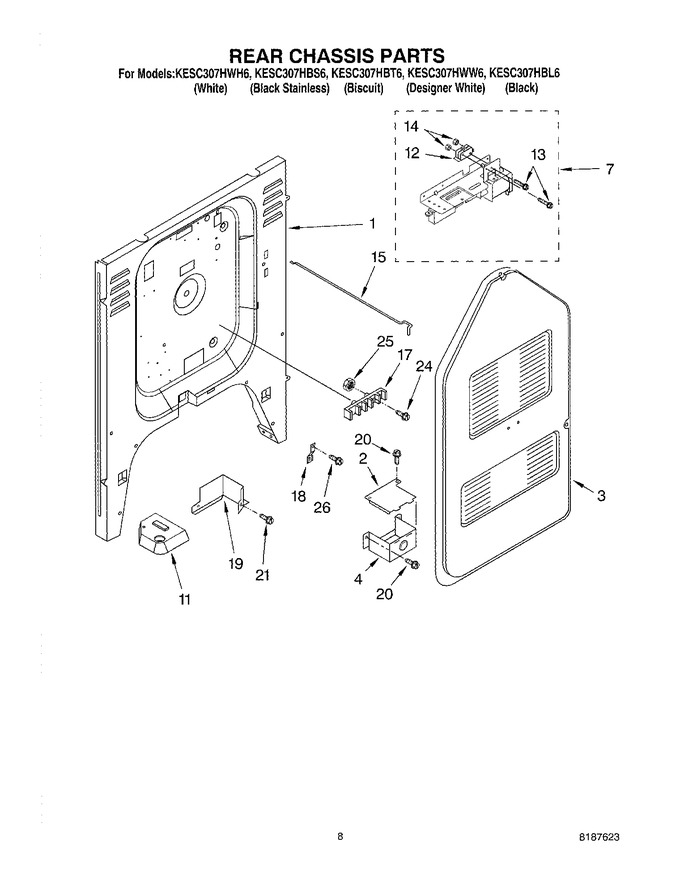

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751051		Back Panel, Chassis		Appelez-nous	-
2	9752345		Cover, Terminal Box		Appelez-nous	-
3	9751353		Panel, Rear Cover		Appelez-nous	-
4	9752344		Box, Terminal		Appelez-nous	-
7	9755001		Oven Lock Assembly		Appelez-nous	-
11	9782330		Block, Balance		Appelez-nous	-
12	9754291		Switch, Interlock		Appelez-nous	-
13	9750887		Screw, 4-40 X 1		Appelez-nous	-
14	9750888		Nut		Appelez-nous	-
15	9750523		Rod, Lock		Appelez-nous	-
17	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
18	313660		Clip		Appelez-nous	-
18	3169573		Strap, Ground		Appelez-nous	-
19	9751798		Back, Vent		Appelez-nous	-
20	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
21	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
24	98884		Screw, 10-16 X 1		Appelez-nous	-
25	WP112432		Nut, 10-32 Hex   (Replaces: 112432)				$ 7.16
26	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
