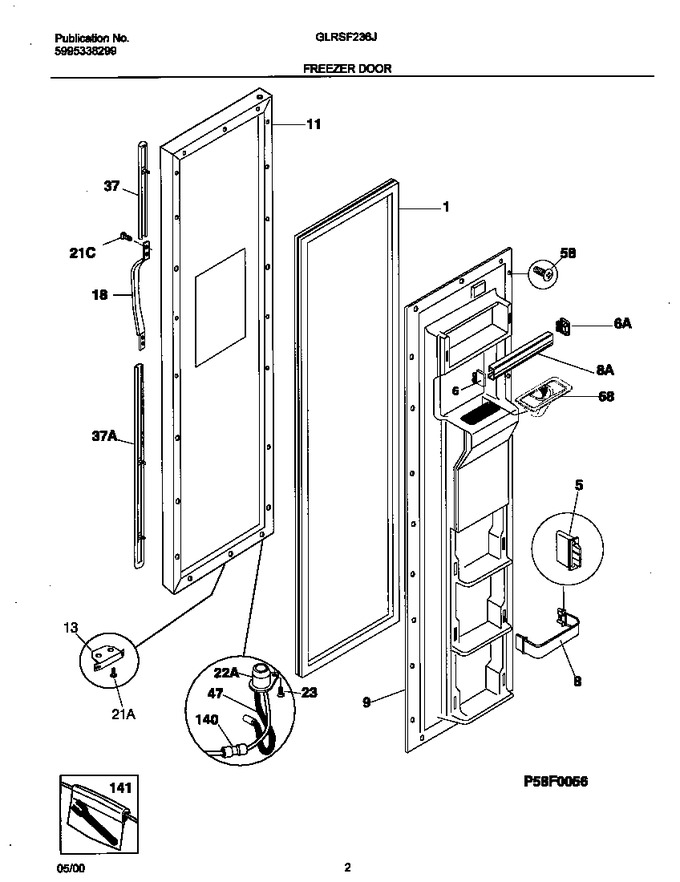

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734323		Gasket-frzr Door, Black, Magnetic				$ 215.25
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
6	5303323484		Support-door Rack, White, Lh		Appelez-nous	-
6	5303323485		Support-door Rack, White, Rh		Appelez-nous	-
8	215474054		Rack-door		Appelez-nous	-
8	218807030		Rack-door,w/end Caps		Appelez-nous	-
9	218510601		Panel-inner Door, Frzr		Appelez-nous	-
11	5303918157		Panel-ext Frzr Door,black ,w/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218762703		Handle-door,black				$ 67.04
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	218811627		Trim-handle,black ,lower ,w/gold Band ,and Snap Lock		Appelez-nous	-
37	218811628		Trim-handle,black ,upper ,w/gold Band ,and Snap Lock		Appelez-nous	-
47	218922901		Wiring Harness,frzr Door		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
68	218020600		Chute-ice		Appelez-nous	-
140	218922801		Elbow-water Tube				$ 55.28
141	218929601		Tool-push Connector		Appelez-nous	-
*94880	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	218676003		Band-decorative, Gold				$ 47.11
37B	215782300		Lock-handle Trim,snap-in				$ 34.49
