Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	215390401		Panel-inner Door,refr		Appelez-nous	-
4	218807029		Rack-door,w/end Caps		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303304563		Door-dairy		Appelez-nous	-
12	218364006		Frame-nameplate, Black		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	218364005		Frame-nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303918173		Panel-ext Refr Door,almond ,w/foam Insulatn		Appelez-nous	-
15	5303918158		Panel-ext Ref Door,black ,w/foam Insulatn		Appelez-nous	-
15	5303918156		Panel-ext Ref Door,white ,w/foam Insulatn		Appelez-nous	-
18	218762703		Handle-door,black				$ 67.04
18	218762704		Handle-door, Almond		Appelez-nous	-
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
22	5303289320		Bearing-hinge				$ 19.69
37	215867064		Trim-handle,white ,upper ,w/dec Gold Band,and Snap Lock				$ 11.39
37	218811628		Trim-handle,black ,upper ,w/gold Band ,and Snap Lock		Appelez-nous	-
37	215867065		Trim-handle,almond ,upper ,w/dec Gold Band,and Snap Lock		Appelez-nous	-
49	218592327		Bin-door,gallon		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
37A	218811627		Trim-handle,black ,lower ,w/gold Band ,and Snap Lock		Appelez-nous	-
37A	215867061		Trim-handle,white ,lower ,w/dec Gold Band,and Snap Locks		Appelez-nous	-
37A	218676003		Band-decorative, Gold				$ 47.11
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37A	215867062		Trim-handle,almond ,lower ,w/dec Gold Band,and Snap Locks				$ 114.03
F2	215734324		Gasket-refr Door, Black, Magnetic				$ 242.92
F2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
NI	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
NI	215008604		Label-nameplate,white		Appelez-nous	-
NI	215008605		Label-nameplate,almond		Appelez-nous	-
NI	215008606		Label-nameplate,black		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

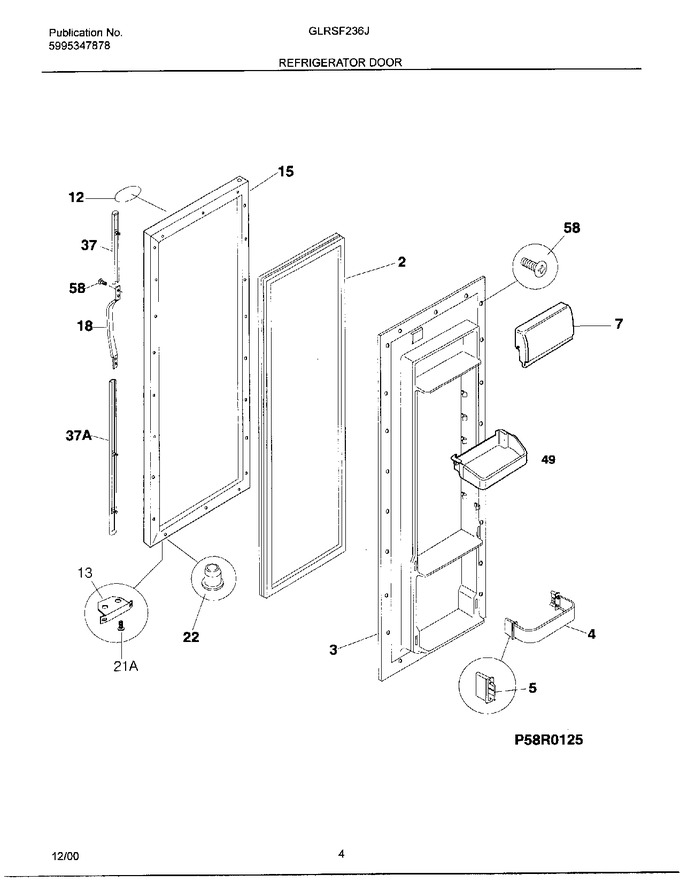

    View Diagram in Separate Window       Print Part List
