SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door & Drawer


04 - Oven Chassis


05 - Oven


06 - Rear Chassis


07 - Hidden Bake

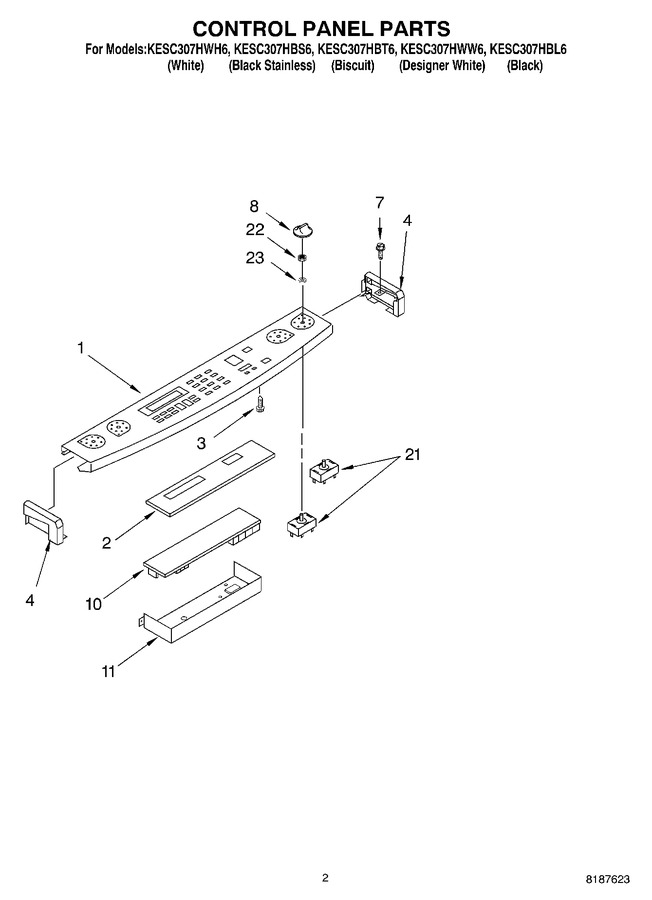

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9754342CW		Console, Glass (white)		Appelez-nous	-
1	9754342CB		Console, Glass (black)		Appelez-nous	-
1	9754342CC		Console, Glass (biscuit)		Appelez-nous	-
2	9754376		Microcmptr		Appelez-nous	-
3	9780271		Screw, 8-18 X 1/4``		Appelez-nous	-
4	9751039FC		End Cap (left Hand) (biscuit)		Appelez-nous	-
4	9751040FW		End Cap (right Hand) (white)		Appelez-nous	-
4	9751040FB		End Cap Right Hand (black)		Appelez-nous	-
4	9751040FC		End Cap (right Hand) (biscuit)		Appelez-nous	-
4	9751039FW		(end Cap Left Hand) (white)		Appelez-nous	-
4	9751039FB		(end Cap Left Hand) (black)		Appelez-nous	-
7	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
8	WP9750372FC		Knobs, Control (biscuit)   (Replaces: 9750372FC)			Immediately	$ 6.47
8	WP9750372FF		Knobs, Control (black)   (Replaces: 9750372FF)			Immediately	$ 18.86
8	WP9750372FW		Knobs, Control (white)   (Replaces: 9750372FW)				$ 17.99
10	9754383		Microcptr		Appelez-nous	-
11	9755021		Shield, Control Panel		Appelez-nous	-
21	WP9755175		Switch, Infinite (1000-2400w, Lf)   (Replaces: 9755175)				$ 118.76
21	9751362		Switch, Infinite (2200w, Rr)				$ 72.53
21	9751364		Switch, Infinite (1500w, Lr)				$ 72.83
21	9751363		Switch, Infinite (1800w, Rf)				$ 71.70
22	00422610		Nut, Mounting   (Replaces: 422617)				$ 139.96
23	9781455		Seal, Switch (4)		Appelez-nous	-
