SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Wiring Harness


07 - Rear Chassis, Optional

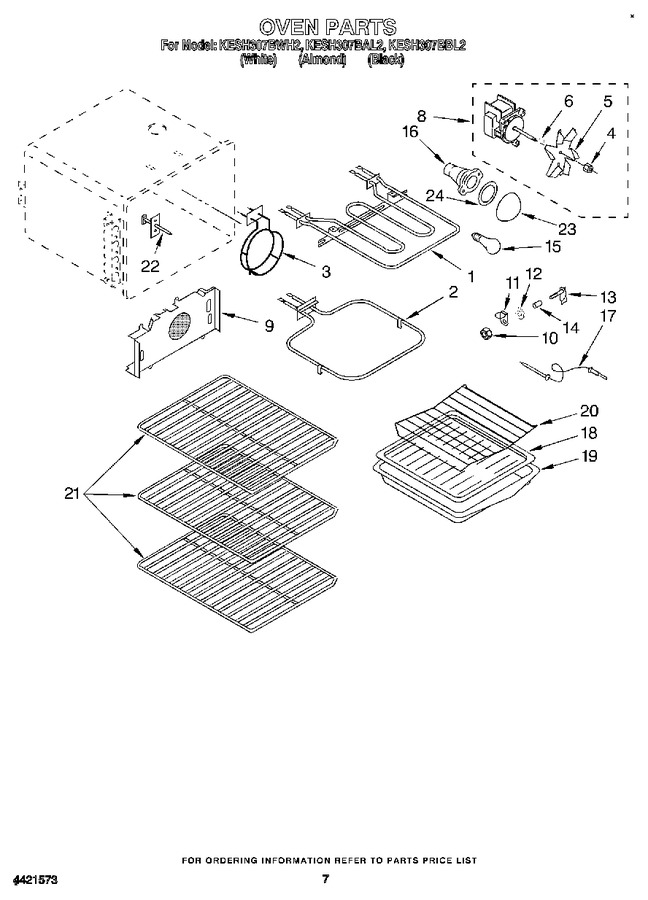

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	UT513		Element, Broil   (Replaces: 9750967)			Immediately	$ 56.69
2	UB413		Element, Bake   (Replaces: 9750213)			Immediately	$ 47.24
3	WPW10280189		Element, Convection   (Replaces: 9751447)				$ 295.73
3	9780269		Screw, Elements 8-32 X 3/8		Appelez-nous	-
3	340184		Screw (2) No.10-16 X 1 1/2				$ 12.10
4	4173237		Nut		Appelez-nous	-
5	9751117		Fan		Appelez-nous	-
6	4173238		Shim Ring		Appelez-nous	-
8	9751259		Assembly, Fan		Appelez-nous	-
8	9780272		Screw, 10 X 1/2``		Appelez-nous	-
9	4211894		Baffle, Convection		Appelez-nous	-
9	9780270		Screw (2) 8 X 3/8		Appelez-nous	-
10	4167277		Lock-nut, Cvr.jack		Appelez-nous	-
11	4167266		Jack Cover		Appelez-nous	-
12	4163975		Gasket		Appelez-nous	-
13	3150107		Receptacle, Probe		Appelez-nous	-
14	3179672		Spacer - Tubing		Appelez-nous	-
15	40A15		Bulb, Oven   (Replaces: 4211947)			Immediately	$ 1.98
16	W11594027		Socket, Light   (Replaces: 9781050)			Immediately	$ 78.31
17	3150144		Probe				$ 106.70
18	4396923		Grill, Broiler   (Replaces: 4421424)			Immediately	$ 52.04
19	4396923		Pan, Broiler   (Replaces: 4211944)			Immediately	$ 52.04
20	3181534		Rack, Roasting		Appelez-nous	-
21	9750823		Rack, Standard		Appelez-nous	-
22	3148440		Sensor		Appelez-nous	-
22	9780269		Screw, (1) 8-32 X 3/8		Appelez-nous	-
23	WP9781049		Lens, Light   (Replaces: 9781049)			Immediately	$ 71.93
24	WP3184533		Gasket, Len`s   (Replaces: 3184533)			Immediately	$ 7.73

    View Diagram in Separate Window       Print Part List
