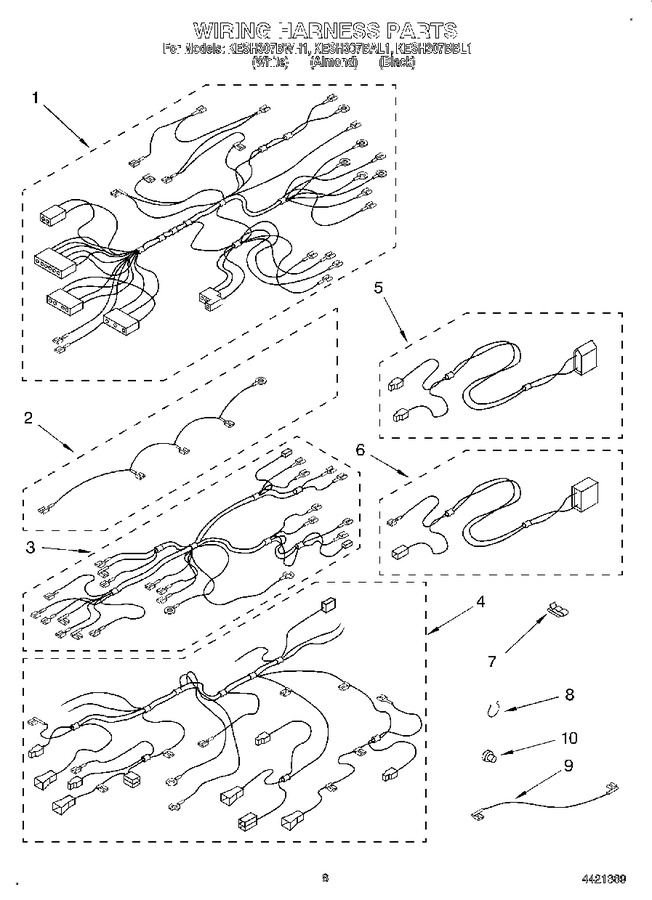

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751521 | Harness, (oven) |
|
- | |||||
| 2 | 9751837 | Harness, (l-2, 5 Wire) |
|
- | |||||
| 2 | 9751839 | Harness, (l-2, 4 Wire) |
|
- | |||||
| 3 | 9751519 | Harness, Wire (cooktop) |
|
- | |||||
| 4 | 9752036 | Harness, (control Ceran) |
|
- | |||||
| 5 | 9750376 | Harness, (door) |
|
- | |||||
| 6 | 9751139 | Harness, (probe) |
|
- | |||||
| 7 | 3400964 | Harness Clip (Replaces: 422667) |
|
$ 76.28 | |||||
| 8 | 9750984 | Hanger, Cable |
|
- | |||||
| 9 | 9780112 | 18`` Green |
|
- | |||||
| 10 | 9751868 | Grommet, Harness |
|
- |
