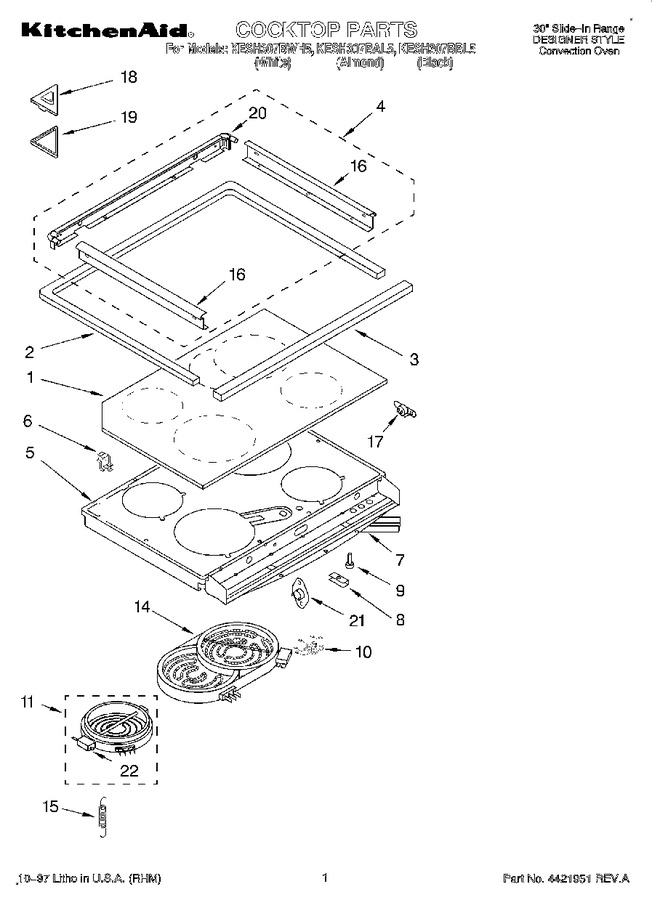

01 - Cooktop
02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Rear Chassis, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751755 | Cooktop, Ceran (white) |
|
- | |||||
| 1 | 9751756 | Cooktop, Ceran (almond) |
|
- | |||||
| 1 | 9751757 | Cooktop, Ceran (black) |
|
- | |||||
| 2 | WP9780939 | Gasket, Cooktop (Replaces: 9780939) |
|
Immediately | $ 60.83 | ||||
| 3 | 9751478 | Gasket, Console |
|
- | |||||
| 4 | 4421431 | Frame, Cooktop (almond) |
|
- | |||||
| 4 | 4421432 | Frame, Cooktop (black) |
|
- | |||||
| 4 | 4421430 | Frame, Cooktop (white) |
|
- | |||||
| 5 | 9781465 | Support, Element |
|
- | |||||
| 6 | 9751629 | Bracket, Pivot |
|
- | |||||
| 6 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 6 | 9752003 | Washer (2) |
|
- | |||||
| 7 | WP3387230 | Screw (2) 10 X 3/4`` (Replaces: 9780273) |
|
Immediately | $ 7.69 | ||||
| 7 | 422404 | Brace, Support |
|
- | |||||
| 8 | 9751871 | Screw (4) |
|
- | |||||
| 8 | 9750821 | Support Clips (4) |
|
- | |||||
| 9 | 238614 | Bumper, Rubber (white (4)) (Replaces: 9750969) |
|
$ 72.68 | |||||
| 9 | 238614 | Bumper, Rubber (black (4)) (Replaces: 9780771) |
|
$ 72.68 | |||||
| 10 | 9781497 | Hot Light |
|
- | |||||
| 11 | 3189894 | Element, Surface (1400w - Lr) |
|
- | |||||
| 11 | 3189657 | Element, Surface (1800w - Rf) |
|
- | |||||
| 11 | 3189897 | Element, Surface (2400w - Lf) |
|
- | |||||
| 14 | 9752234 | Dual Element, Rr |
|
- | |||||
| 15 | 9781211 | Spring (14) |
|
- | |||||
| 16 | 9751440PW | Trim, Side Frame (white) |
|
- | |||||
| 16 | 9751440PB | Trim, Side Frame (black) |
|
- | |||||
| 16 | 9751440PT | Trim, Side Frame (almond) |
|
- | |||||
| 17 | 9780265 | Screw (2) |
|
- | |||||
| 17 | 341196 | Thermo-disc |
|
$ 33.17 | |||||
| 18 | 9751800 | Cover, Vent |
|
- | |||||
| 19 | 9751841 | Gasket, Vent |
|
- | |||||
| 20 | 9752045PB | Trim, Rear Frame (incls. End Caps) (black) |
|
- | |||||
| 20 | 9752045PW | Trim, Rear Frame (incls. End Caps) (white) |
|
- | |||||
| 20 | 9752045PT | Trim, Rear Frame (incls. End Caps) (almond) |
|
- | |||||
| 21 | WP9759944 | Bimetal (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| 22 | 3190253 | Limiter, Temp. (1400 W - Lr) |
|
- | |||||
| 22 | 3190251 | Limiter, Temp. (2400 W - Lf) |
|
- | |||||
| 22 | 3189669 | Limiter, Temp (1800w - Rf) |
|
- |
