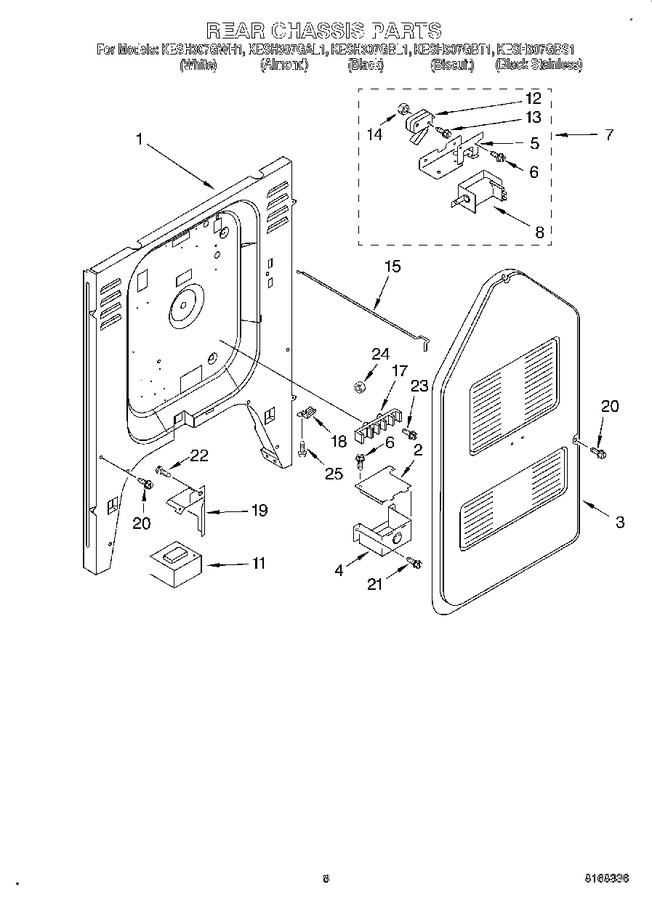

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751051 | Back Panel, Chassis |
|
- | |||||
| 2 | 9752345 | Cover, Terminal Box |
|
- | |||||
| 3 | 9751353 | Panel, Rear Cover |
|
- | |||||
| 4 | 9752344 | Box, Terminal |
|
- | |||||
| 5 | 9751418 | Bracket, Lock |
|
- | |||||
| 6 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 7 | 9751439 | Oven Lock Assembly |
|
- | |||||
| 8 | 9751590 | Solenoid |
|
- | |||||
| 11 | 9753413 | Block, Balance |
|
- | |||||
| 12 | 9751763 | Switch, Interlock |
|
- | |||||
| 13 | 9750887 | Screw |
|
- | |||||
| 14 | 9750888 | Nut |
|
- | |||||
| 15 | 9750523 | Rod, Lock |
|
- | |||||
| 17 | WP8203546 | Terminal Block (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 18 | WP681414 | Screw, Grounding (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 18 | 3169573 | Strap, Ground |
|
- | |||||
| 18 | 313660 | Clip |
|
- | |||||
| 19 | 9751798 | Vent Back, Oven |
|
- | |||||
| 20 | 423247 | Screw |
|
- | |||||
| 21 | 9780272 | Screw, 10-16 X 1/2 |
|
- | |||||
| 22 | 340184 | Screw, 10-16 X 1.5 |
|
$ 12.10 | |||||
| 23 | 98884 | Screw, 10-16 X 1 |
|
- | |||||
| 24 | WP112432 | Nut, Hex No.10 (Replaces: 112432) |
|
$ 7.16 | |||||
| 25 | 9753543 | Glass Cleaner |
|
- | |||||
| 25 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 25 | 261582 | Grease |
|
- | |||||
| 25 | 9751745 | Anti-tip Kit |
|
$ 19.35 | |||||
| 25 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 25 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 25 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 25 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 25 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 25 | WP681414 | Screw, Ground (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 25 | 261888 | New Avocado |
|
- | |||||
| 25 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 25 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 25 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 25 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 25 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 25 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 25 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 25 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 25 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 25 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 25 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 25 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 25 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 25 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 25 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 25 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 25 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 25 | 261886 | Coffee |
|
- | |||||
| 25 | 261890 | Harvest Gold |
|
- | |||||
| 25 | 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | ||||
| 25 | WA906B | Scraper (Replaces: 3183488) |
|
Immediately | $ 4.86 | ||||
| 25 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 25 | 978883 | Almond (uncut) |
|
- | |||||
| 25 | 261891 | Harvest Gold (uncut) |
|
- | |||||
| 25 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 25 | 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | ||||
| 25 | 9750222 | Insulation, Wrap |
|
- | |||||
| 25 | 9750221 | Insulation, Rear |
|
- | |||||
| 9750376 | Harness, Wire (oven Door) |
|
- | ||||||
| 9781767 | Harness, Wire (control, Ceran) |
|
- | ||||||
| LIT9752686 | Smart & Easy Guide |
|
- | ||||||
| LIT9753027 | Tech Sheet |
|
- | ||||||
| LIT9753028 | Wiring Diagram |
|
- | ||||||
| LIT9752775 | Template, Anti-tip |
|
- | ||||||
| LIT3191638 | Safer Cooking Tips |
|
- | ||||||
| 9781758 | Harness, Wire (main Harness) |
|
- | ||||||
| 9781822 | Harness, Wire (cooktop) |
|
- | ||||||
| 9781769 | Harness, Wire (ceran) |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 76.28 | ||||||
| WPW10339879 | Tie, Wire (Replaces: 20082084) |
|
$ 7.11 | ||||||
| 9751868 | Grommet, Harness |
|
- | ||||||
| 9781656 | Harness, Wire (l2 Electric) |
|
$ 83.95 | ||||||
| 9751139 | Harness, Wire (meat Probe) |
|
- | ||||||
| LIT9752043 | Installation Instructions |
|
- | ||||||
| LIT9753309 | Use & Care Guide |
|
- | ||||||
| LIT4449066 | Cookbook T/c Ovens |
|
- |
