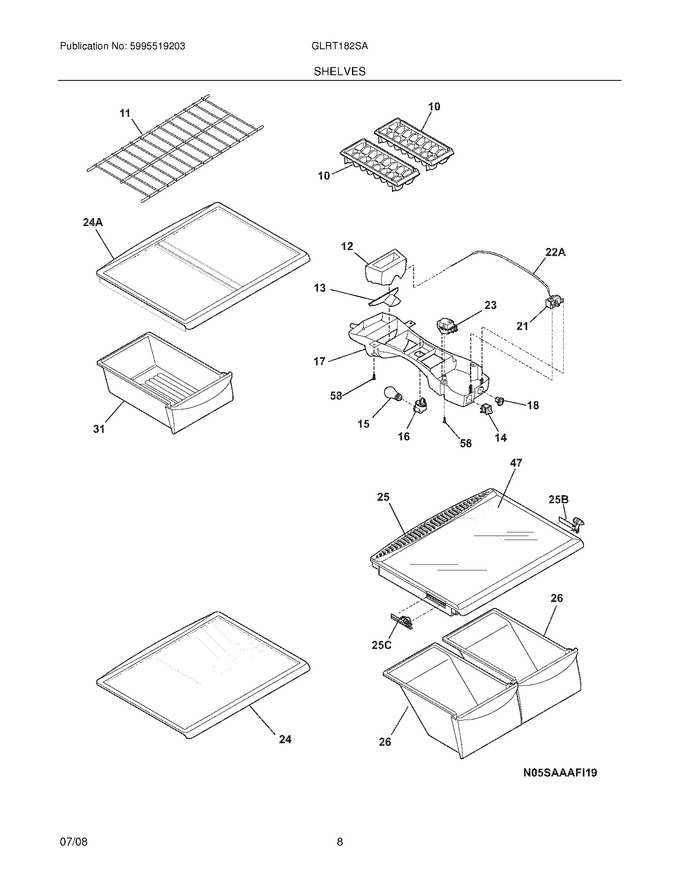

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray,ice Cube ,plastic			Immediately	$ 6.07
11	240358002		Shelf-freezer,full Width		Appelez-nous	-
12	240545001		Diffuser,air ,top				$ 44.61
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
15	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 20.48
16	241559801		Socket-light/lamp   (Replaces: 241500701)				$ 72.68
17	240352701		Control Box		Appelez-nous	-
18	240360801		Knob-temp Control				$ 43.95
24	240358926		Shelf-``spill-safe``,sliding,24   (Replaces: 240358918)			Immediately	$ 129.17
25	240364787		Cover-crisper Pan   (Replaces: 240364714)			Immediately	$ 120.98
26	240337103		Pan-crisper,clear ,(2) ,no Graphics			Immediately	$ 148.35
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240530803)			Immediately	$ 135.77
47	240350608		Insert-pan Cover,glass   (Replaces: 240350650)			Immediately	$ 45.50
58	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
24A	240358926		Shelf-``spill-safe``,sliding   (Replaces: 240358917)			Immediately	$ 129.17
25B	241613501		Control-humidity,rh			Immediately	$ 12.05
25C	241613502		Control-humidity,lh				$ 47.78
F14	240505801		Switch-light/lamp				$ 66.63
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 72.31
F23	215846602		Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 28.20
FNI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	5304455649		Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,   (Replaces: 5303001259)				$ 17.01
NI	240371304		Seal,foam ,air Diffuser				$ 13.65
