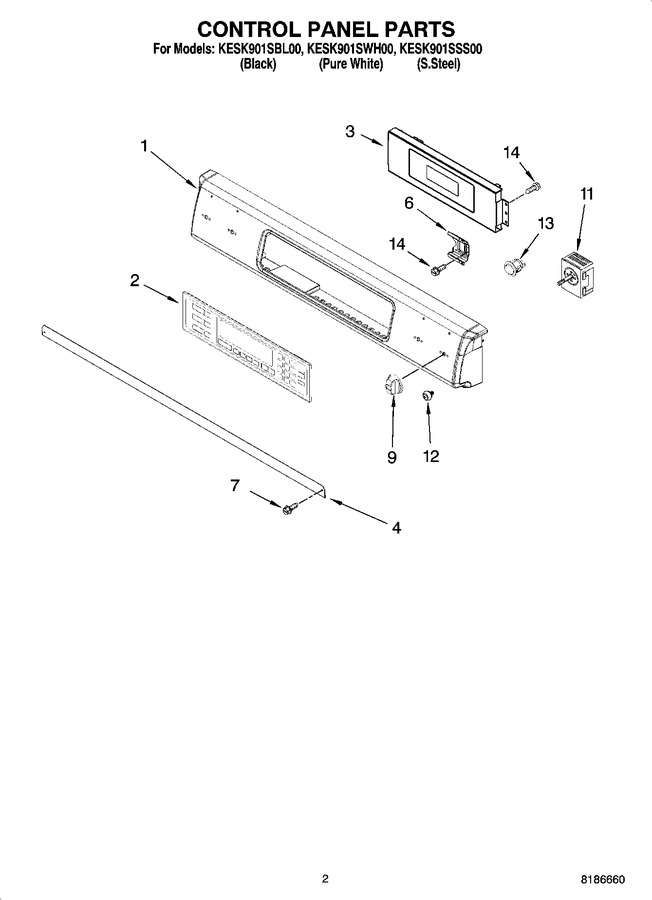

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9761645NP | Control Panel (s.steel) |
|
- | |||||
| 1 | 9761645WH | Control Panel (white) |
|
- | |||||
| 1 | 9761645BL | Control Panel (black) |
|
- | |||||
| 2 | 9761565 | Switch, Membrane (touchsensor Glas) |
|
$ 214.96 | |||||
| 3 | 9763484 | Control, Interface |
|
- | |||||
| 4 | W10105370 | Shield, Console |
|
$ 69.83 | |||||
| 6 | 9761745 | Brkt, Touchsensor |
|
$ 40.75 | |||||
| 7 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 9 | W10130379 | Knob (rf, Rr, Lr) (s.steel) (Replaces: 9761570NP) |
|
- | |||||
| 9 | 9761570BL | Knob (rf, Rr, Lr) (black) |
|
- | |||||
| 9 | 9761570WH | Knob (rf, Rr, Lr) (white) |
|
- | |||||
| 9 | 9762763NP | Knob (lf) (s.steel) |
|
- | |||||
| 9 | 9762763BL | Knob (lf) (black) |
|
- | |||||
| 9 | 9762763WH | Knob (lf) (white) |
|
- | |||||
| 11 | WP3191049 | Switch, Infinite (lr) (Replaces: 4454539) |
|
$ 150.25 | |||||
| 11 | WP4454541 | Switch, Infinite (rr) (Replaces: 4454541) |
|
$ 149.46 | |||||
| 11 | WP3191050 | Switch, Infinite (rf) (Replaces: 4454540) |
|
Immediately | $ 149.72 | ||||
| 11 | WP4456027 | Switch, Infinite (lf) (Replaces: 4456027) |
|
$ 138.70 | |||||
| 12 | 9757778 | Bushing |
|
$ 83.68 | |||||
| 13 | 9761781WH | Switch, Accusimmer (white) |
|
- | |||||
| 13 | WPW10163899 | Switch, Accusimmer (black) (Replaces: 9761781BL) |
|
$ 80.45 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 |
