SELECT A DIAGRAM

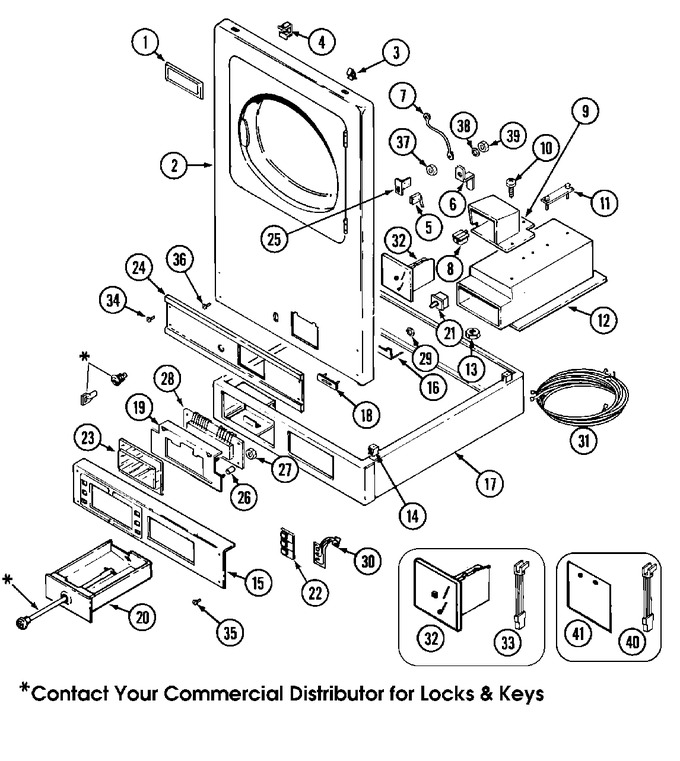

01 - Controls & Upper Panel


02 - Front


03 - Door


04 - Rear


05 - Tumbler


06 - Gas Valve


07 - Motor Drive


08 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Name Plate	A0	Appelez-nous	-
002	NLA		Panel, Front (upr-wht)	A0	Appelez-nous	-
002	33001447		(upr-wht)	A1	Appelez-nous	-
003	WP22001650		Fastener, Panel   (Replaces: 212982)	A0		Immediately	$ 7.34
004	Y310376		Clip, Fastener	A0	Appelez-nous	-
005	912012		Screw, Switch	A0	Appelez-nous	-
005	Y306232		Switch, Access	A0	Appelez-nous	-
006	314625		Cam, Locking	A0	Appelez-nous	-
007	WP90767		Screw, Ground Wire   (Replaces: 211294)	A0		Immediately	$ 7.04
007	Y306712		Ground Wire, Lock	A0	Appelez-nous	-
008	314635		Chute, Coin	A0	Appelez-nous	-
009	NLA		Cover, Coin Drop	A0	Appelez-nous	-
010	314654		Bolt, Coin Drop Cover	A0	Appelez-nous	-
011	NLA		Lockwasher, Mounting Strap	A0	Appelez-nous	-
012	NLA		Vault Assembly (wht)	A0	Appelez-nous	-
012	910387		Lockwasher, Vault Assembly	A0	Appelez-nous	-
013	WP62739		Nut, Mounting Strap   (Replaces: Y052740)	A0			$ 6.85
013	NLA		Lockwasher, Cover Bolt	A0	Appelez-nous	-
014	310933		Clip, Support Assembly	A0	Appelez-nous	-
015	33001023		Extrusion, Control (lwr)	A0	Appelez-nous	-
016	314631		Bracket, Coin Drop	A0	Appelez-nous	-
016	Y310632		Screw, Bracket	A0	Appelez-nous	-
016	Y313561		Screw, Bracket	A0			$ 5.27
017	NLA		Support Assembly (wht)	A0	Appelez-nous	-
018	306233		Strap, Coin Acceptor	A0	Appelez-nous	-
019	910186		Screw, Plate	A0	Appelez-nous	-
019	33001201		Plate, Control Mounting	A0	Appelez-nous	-
020	308143L		(alm)	A0	Appelez-nous	-
020	308143		Tray, Coin (wht)	A0	Appelez-nous	-
021	WPW10131838		Switch, Vault & Service Door   (Replaces: 33001250)	A0			$ 21.52
022	WP33001156		Button, Push   (Replaces: 33001156)	A0			$ 64.53
023	33001209		Cover, Display	A0			$ 22.66
024	NLA		Extrusion, Control (upr)	A0	Appelez-nous	-
025	WPW10139210		Screw, Bracket   (Replaces: 211168)	A0			$ 6.75
025	314634		Bracket, Access Switch	A0	Appelez-nous	-
026	33001204		Stand-off, Control Board	A0	Appelez-nous	-
027	M0282005		Nut, Control Board   (Replaces: 912077)	A0			$ 7.07
028	33002605		Board, Control   (Replaces: 33001290)	A0	Appelez-nous	-
028	33001249		Battery, Control Board	A0	Appelez-nous	-
029	WP486255		Nut, Coin Drop   (Replaces: Y052659)	A0			$ 5.54
030	WP33002449		Switch, Membrane   (Replaces: 33001200)	A0			$ 74.27
031	33001032		Wire Harness, Main (lwr)	A0	Appelez-nous	-
031	33001033		(lwr)	A0	Appelez-nous	-
031	33001196		Wire Harness, Main (upr)	A0	Appelez-nous	-
031	33001197		(upr)	A0	Appelez-nous	-
031	33001404		Wire Harness, Main (upr)	A1	Appelez-nous	-
031	33001405		(lwr)	A1	Appelez-nous	-
031	33001407		(lwr)	A1	Appelez-nous	-
031	910768		Strap, Harness	A0	Appelez-nous	-
031	NLA		Wire Harness, Main (upr)	A1	Appelez-nous	-
031	314522		Grommet, Strain Relief	A0	Appelez-nous	-
032	Y308123		(can-25 Cents)	A0	Appelez-nous	-
032	308121		Rejector Assembly (25 Cents)	A0	Appelez-nous	-
033	33001025		Optic Switch Assembly	A0	Appelez-nous	-
033	315427		Screw, Switch Assembly	A0	Appelez-nous	-
034	315489		Screw, Front Panel	A0	Appelez-nous	-
034	WPW10131119		Screw, Extrusion   (Replaces: 215506)	A0			$ 6.26
035	WPW10131119		Screw, Extrusion (lwr)   (Replaces: 215506)	A0			$ 6.26
036	NLA		Clip, Cabinet Screw	A0	Appelez-nous	-
036	314666		Screw, Panel (upr)	A0	Appelez-nous	-
037	W11395752		Nut, Lock   (Replaces: 212328)	A0			$ 11.74
038	WPW10133264		Washer, Lock   (Replaces: 22001354)	A0			$ 125.12
039	22001355		Nut, Lock	A0	Appelez-nous	-
040	33001025		Optic Switch Assembly (part Not Used)	A0	Appelez-nous	-
041	33001157		Plate, Coin Drop Cover (part Not Used)	A0	Appelez-nous	-
