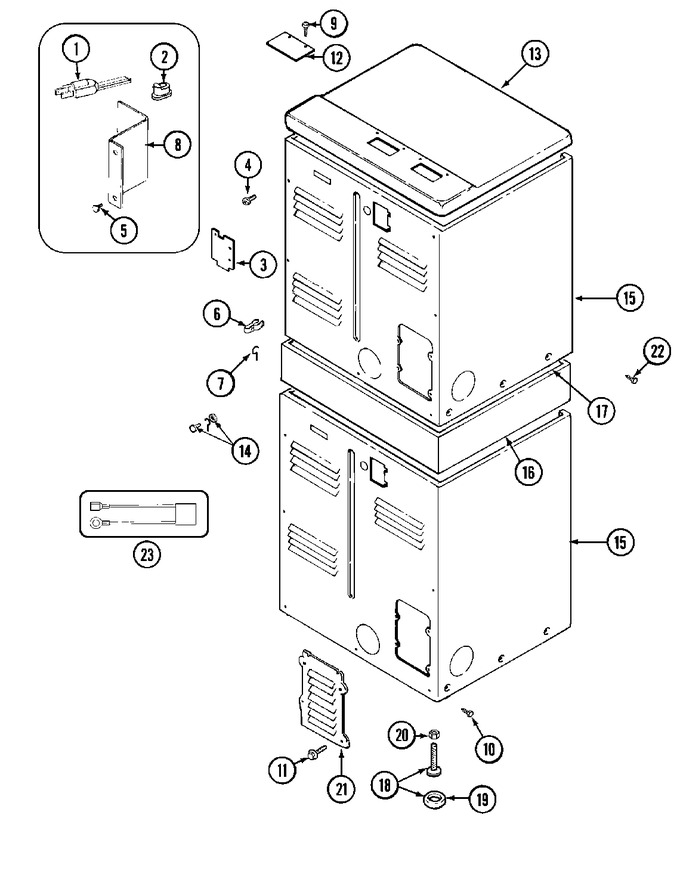

01 - Controls & Upper Panel


02 - Front


03 - Door


04 - Rear


05 - Tumbler


06 - Gas Valve


07 - Motor Drive


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	308966		Cord, Power (export)	A0	Appelez-nous	-
002	NLA		Grommet, Power Cord	A0	Appelez-nous	-
003	Y312905		Cover, Terminal	A0	Appelez-nous	-
004	Y313561		Screw, Terminal Cover	A0			$ 5.27
005	W11164114		Screw, Terminal Bracket   (Replaces: Y312209)	A0			$ 3.76
006	313122		Screw, Clamp	A0	Appelez-nous	-
006	301548		Clamp, Ground (w/screw)	A0	Appelez-nous	-
007	311155		Wire, Ground	A0			$ 8.77
008	Y312904		Bracket, Terminal	A0	Appelez-nous	-
009	WP90767		Screw, Top Cover Plate   (Replaces: Y313559)	A0		Immediately	$ 7.04
010	213007		Screw, Cabinet Side	A0			$ 10.99
011	WP90767		Screw, Access Cover   (Replaces: Y313559)	A0		Immediately	$ 7.04
011	WP90767		Screw, Access Cover   (Replaces: 211294)	A0		Immediately	$ 7.04
012	NLA		Plate, Top Cover	A0	Appelez-nous	-
013	NLA		(alm)	A0	Appelez-nous	-
013	33001165		Cover, Top Assy. (wht)	A0	Appelez-nous	-
014	NLA		Screw & Washer Assy.	A0	Appelez-nous	-
015	Y310632		Screw, Cabinet	A0	Appelez-nous	-
015	NLA		Cabinet (wht)	A0	Appelez-nous	-
016	NLA		Support Assy. (wht)	A0	Appelez-nous	-
017	310933		Fastener, Spacer Assy.	A0	Appelez-nous	-
018	22003428		Leg, Adjustable (w/nut)---s   (Replaces: Y302699)	A0		Immediately	$ 14.41
019	WP210684		Foot, Rubber   (Replaces: 210684)	A0		Immediately	$ 14.09
020	WP210385		Nut, Adjustable Leg   (Replaces: 210385)	A0			$ 6.26
021	Y312951		Cover, Access	A0	Appelez-nous	-
022	NLA		Screw, Support	A0	Appelez-nous	-
022	Y310632		Screw, Support	A0	Appelez-nous	-
