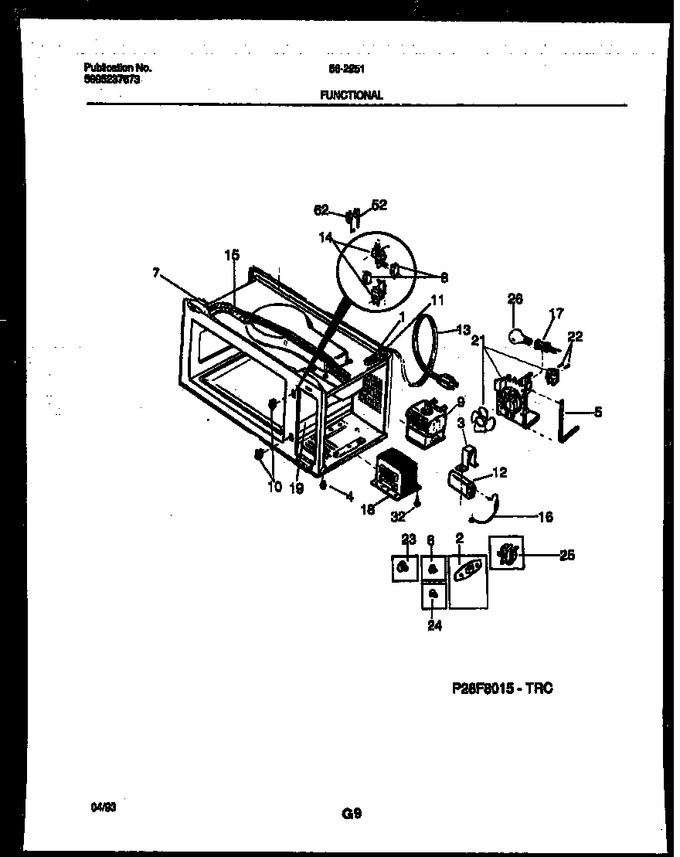

02 - Control Panel
03 - Door Parts
04 - Functional Parts
05 - Wrapper And Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308037723 | Fuse, 15 Amp |
|
- | |||||
| 2 | 5303013626 | Plug-button, Browner, (2) |
|
- | |||||
| 3 | 5303013771 | Retainer-capacitor |
|
- | |||||
| 4 | 5303295314 | Spacer, Foot, (4) |
|
- | |||||
| 5 | 5303017864 | Tape, Foam Seal, 1/4 X 1/4 In., Cut To Size |
|
- | |||||
| 6 | 5303201365 | Plug, Button, White. Probe |
|
- | |||||
| 8 | 5303203636 | Switch, Interlock |
|
- | |||||
| 9 | 5303206781 | Magnetron |
|
- | |||||
| 10 | 5303212767 | Bezel Latch (2) |
|
- | |||||
| 11 | 5303212769 | Bushing-fuse Holder, Strain Relief |
|
- | |||||
| 12 | 5303212773 | Capacitor |
|
- | |||||
| 13 | 317005401 | Cord-electric Power, 120 V |
|
- | |||||
| 14 | 317000702 | Bracket-switch, (2) |
|
- | |||||
| 15 | 5303212783 | Seal, Foam |
|
- | |||||
| 16 | 5303212799 | Harness And Diode, Hv |
|
- | |||||
| 17 | 5303212810 | Socket-light/lamp, Oven, 120 V |
|
- | |||||
| 18 | 5303212811 | Transformer, 120v |
|
- | |||||
| 19 | 5303212845 | Seal, Foam |
|
- | |||||
| 21 | 5303922053 | Motor-fan, 120 V, Includes Motor, Fan Duct, Fan Blade, I |
|
- | |||||
| 22 | 5308014502 | Screw, 6, 32 X 1, 1/8, Fan Motor, (2) |
|
- | |||||
| 23 | 5308037664 | Plug, Button, White, Rack (4) |
|
- | |||||
| 24 | 5308037665 | Plug, Button, White, Tray, (2) |
|
- | |||||
| 25 | 5303212787 | Clamp, Cable |
|
- | |||||
| 26 | 5303272172 | Lamp, 25 W, 120 V |
|
- | |||||
| 32 | 5303013944 | Screw, Hx Serr Wshr Hd, 1/4-20 X 1/2, Transformer, (2) |
|
- | |||||
| 52 | 317005104 | Switch-door Sensor |
|
- | |||||
| 62 | 317005103 | Switch-monitor, Snap |
|
- | |||||
| *84927 | 317000317 | Harness-wiring, Main |
|
- | |||||
| 22A | 5303013273 | Nut, Hex, 6-32 (non-illustrated) |
|
- |
