01 - Control Panel
02 - Control Center
03 - Cabinet-front
04 - Door
05 - Tumbler
06 - Gas Valve
07 - Motor Drive
08 - Cabinet-rear
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

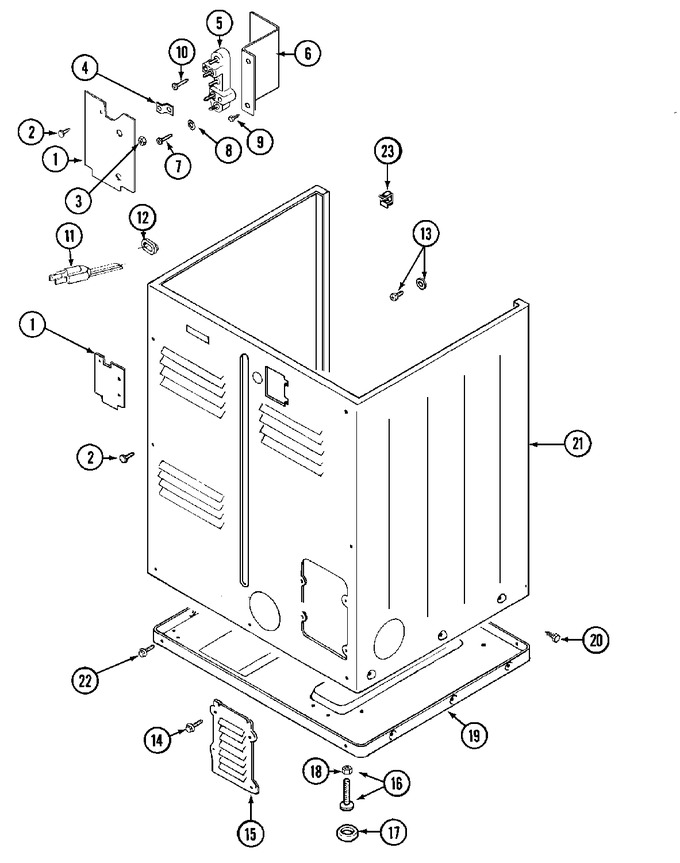

| 001 | Y312905 | Cover, Terminal | 10 |
|
- | ||||
| 002 | Y313561 | Screw, Terminal Cover | 10 |
|
$ 5.27 | ||||
| 003 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 10 |
|
$ 7.16 | ||||
| 004 | Y312184 | Strap, Ground | 10 |
|
- | ||||
| 005 | W11705611 | Block, Terminal (Replaces: 33001244) | 10 |
|
$ 87.34 | ||||
| 006 | Y312904 | Bracket, Terminal Block | 10 |
|
- | ||||
| 007 | W11164114 | Screw, Terminal Block (Replaces: Y312209) | 10 |
|
$ 3.76 | ||||
| 008 | Y311270 | Washer, Terminal Block | 10 |
|
$ 8.75 | ||||
| 009 | Y310632 | Screw, Terminal Bracket | 10 |
|
- | ||||
| 010 | NLA | Screw, Ground Strap | 10 |
|
- | ||||
| 011 | 308966 | Cord, Power | 10 |
|
- | ||||
| 011 | 33001285 | Cord, Power | 10 |
|
- | ||||
| 011 | 33001425 | Locknut, Eared For Canadian | 10 |
|
- | ||||
| 012 | 216183 | Grommet, Cord Export | 10 |
|
- | ||||
| 013 | NLA | Screw & Washer Assembly | 10 |
|
- | ||||
| 014 | WP489128 | Screw, Access Cover (Replaces: 216423) | 10 |
|
$ 9.79 | ||||
| 015 | Y312951 | Cover, Access | 10 |
|
- | ||||
| 016 | WP233550 | Leg & Nut (Replaces: Y305086) | 10 |
|
$ 7.16 | ||||
| 017 | Y314137 | Foot, Rubber | 10 |
|
$ 14.08 | ||||
| 018 | WP62739 | Nut, Leg (Replaces: Y052740) | 10 |
|
$ 6.85 | ||||
| 019 | Y303361 | Base Assembly | 10 |
|
- | ||||
| 020 | 213007 | Screw, Cabinet Sides | 10 |
|
$ 10.99 | ||||
| 021 | NLA | Cabinet (wht) | 10 |
|
- | ||||
| 022 | Y313561 | Screw, Cabinet | 10 |
|
$ 5.27 | ||||
| 022 | Y310632 | Screw, Cabinet | 10 |
|
- | ||||
| 023 | Y310376 | Clip, Wire Harness | 10 |
|
- |
