01 - Cabinet-front
02 - Door
03 - Cabinet-rear
04 - Tumbler
05 - Gas Valve
06 - Motor Drive
07 - Wiring Information
08 - Control Panel
SELECT A DIAGRAM
New Model Search:

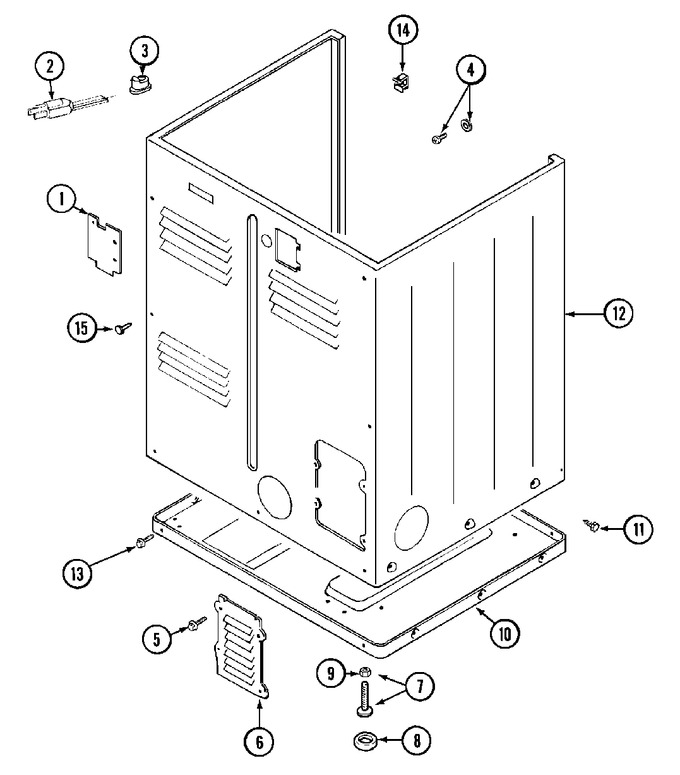

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y312905 | Cover, Terminal | 10 |
|
- | ||||
| 002 | 33001284 | Cord, Power | 10 |
|
- | ||||
| 002 | 308966 | Cord, Power | 10 |
|
- | ||||
| 002 | 33001285 | Cord, Power | 10 |
|
- | ||||
| 003 | 211881 | Grommet | 10 |
|
- | ||||
| 003 | 216183 | Grommet, Cord Export | 10 |
|
- | ||||
| 004 | NLA | Screw & Washer Assembly | 10 |
|
- | ||||
| 005 | WP489128 | Screw, Access Cover (Replaces: 216423) | 10 |
|
$ 9.79 | ||||
| 006 | Y312951 | Cover, Access | 10 |
|
- | ||||
| 007 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 10 |
|
$ 7.16 | ||||
| 007 | 204807 | Wire, Ground | 10 |
|
- | ||||
| 008 | Y314137 | Foot, Rubber | 10 |
|
$ 14.08 | ||||
| 009 | WP62739 | Nut, Leg (Replaces: Y052740) | 10 |
|
$ 6.85 | ||||
| 010 | Y303361 | Base Assembly | 10 |
|
- | ||||
| 011 | 213007 | Screw, Cabinet Sides | 10 |
|
$ 10.99 | ||||
| 012 | NLA | Cabinet (wht) | 10 |
|
- | ||||
| 013 | Y313561 | Screw, Cabinet | 10 |
|
$ 5.27 | ||||
| 013 | Y310632 | Screw, Cabinet | 10 |
|
- | ||||
| 014 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 015 | Y313561 | Screw, Terminal Cover | 10 |
|
$ 5.27 |
