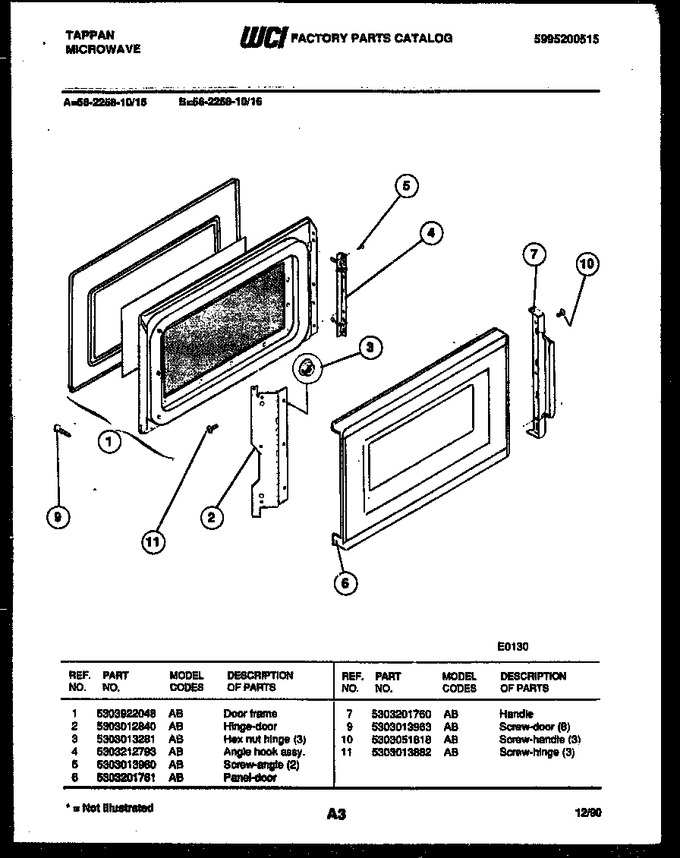

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303922048 | Door Frame |
|
- | |||||
| 2 | 5303012840 | Hinge-door |
|
- | |||||
| 3 | 5303013281 | Hex-nut Hinge (3) |
|
- | |||||
| 4 | 5303212793 | Angle-hook Assy |
|
- | |||||
| 5 | 5303013960 | Screw-angle (2) |
|
- | |||||
| 6 | 5303201761 | Panel Door |
|
- | |||||
| 7 | 5303201760 | Handle |
|
- | |||||
| 9 | 5303013963 | Screw-door (8) |
|
- | |||||
| 10 | 5303051818 | Screw-handle (3) |
|
- | |||||
| 11 | 5303013882 | Screw-hinge (3) |
|
- |
