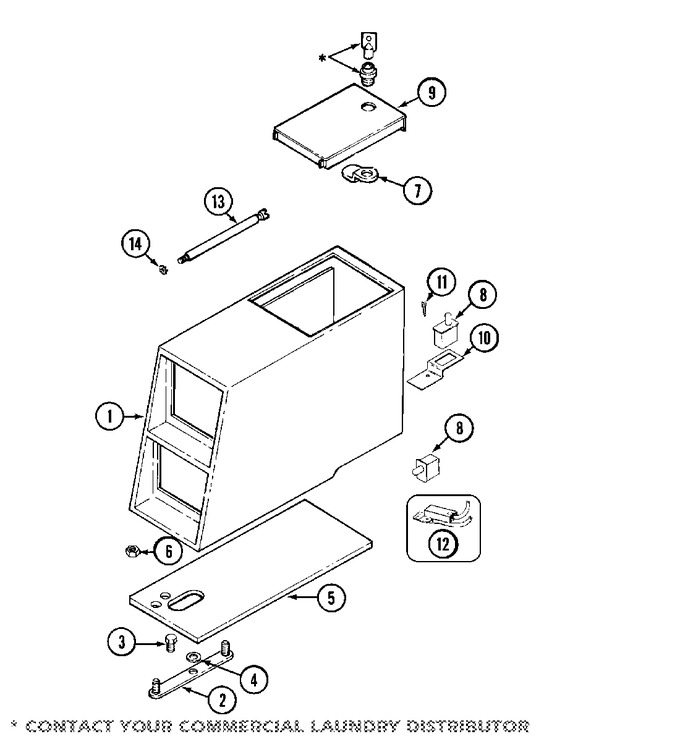

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WPW10529176		Vault, Coin (wht)   (Replaces: 22001871)	10			$ 273.48
002	22001810		Strap, Mounting	10	Appelez-nous	-
003	WP90767		Screw, Mounting Strap   (Replaces: 211294)	10		Immediately	$ 7.04
004	910309		Washer, Strap Screw	10	Appelez-nous	-
005	22001870		Gasket, Coin Vault (wht)	10	Appelez-nous	-
006	WP62739		Nut, Case Mounting   (Replaces: Y052740)	10			$ 6.85
007	NLA		Cam, Locking	10	Appelez-nous	-
008	WPW10131838		Switch, Sensor   (Replaces: 33001250)	10			$ 21.52
008	912012		Screw, Sensor Switch	10	Appelez-nous	-
009	22001910		Door, Access (wht)	10	Appelez-nous	-
010	22001404		Bracket, Switch	10	Appelez-nous	-
011	211605		Retainer	10	Appelez-nous	-
011	WP90767		Screw, Switch Bracket   (Replaces: 212276)	10		Immediately	$ 7.04
012	NLA		Harness, Wire (sensor Switch)	10	Appelez-nous	-
013	213035		Bolt, Locking	10			$ 5.84
014	910181		Lockwasher, Locking Bolt	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
