SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Wiring Harness


07 - Rear Chassis, Optional

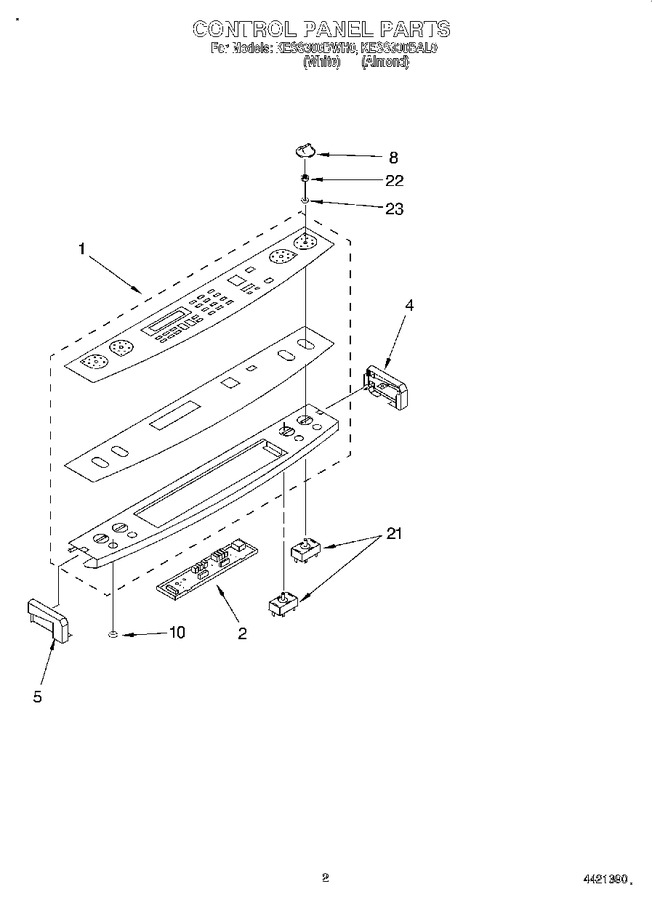

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751897		Console, Glass (white)		Appelez-nous	-
1	9751902		Console, Glass (almond)		Appelez-nous	-
2	9780271		Screw, (2)		Appelez-nous	-
2	9751213		Timer, Electronic		Appelez-nous	-
4	4421439		End Cap R.h. (white)		Appelez-nous	-
4	4421440		End Cap R.h. (almond)		Appelez-nous	-
4	9780265		End Cap R.h. (screw, (2) 10 X 3/8)		Appelez-nous	-
5	4421436		End Cap L.h. (white)		Appelez-nous	-
5	4421437		End Cap L.h. (almond)		Appelez-nous	-
5	3149333		End Cap L.h. (screw, (3) 10 X 1/2)				$ 5.33
5	9780265		End Cap L.h. (screw, (2) 10 X 3/8)		Appelez-nous	-
8	4211913		Knobs, Control (almond)				$ 19.39
8	WP9750372FW		Knobs, Control (white)   (Replaces: 4211909)				$ 17.99
10	9780799		Len`s Indicator (4)		Appelez-nous	-
21	9751362		Switch, Infinite (2100-2600w, Lf)				$ 72.53
21	9751364		Switch, Infinite (1250-1500w, Lr)				$ 72.83
22	4211830		Nut, Mounting (4)		Appelez-nous	-
23	4211860		Seal, Switch (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
