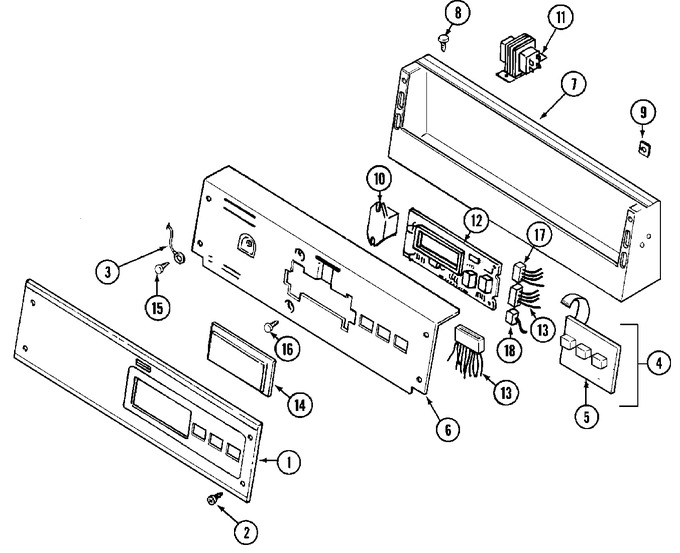

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33001737		Panel, Control	10	Appelez-nous	-
002	WPW10131119		Screw, Control Panel   (Replaces: 215506)	10			$ 6.26
003	22001959		Wire, Ground	10	Appelez-nous	-
004	W10756178		Screw, Switch   (Replaces: 215527)	10			$ 5.39
004	306694		Control Switch Assembly	10			$ 73.51
005	WPW10424308		Pushbutton, Control Switch   (Replaces: 215517)	10		Immediately	$ 18.38
006	33001736		Plate, Back-up (wht)	10	Appelez-nous	-
007	NLA		Console (wht)	10	Appelez-nous	-
008	WP90767		Screw, Console   (Replaces: 212276)	10		Immediately	$ 7.04
009	215003		Clip, Screw	10	Appelez-nous	-
010	206824		Relay, Motor (spst)	10	Appelez-nous	-
010	WP90767		Screw, Relay   (Replaces: Y313559)	10		Immediately	$ 7.04
011	WP90767		Screw, Transformer   (Replaces: 211294)	10		Immediately	$ 7.04
011	WPW10131839		Transformer   (Replaces: 22001960)	10		Immediately	$ 120.20
012	33001204		Standoff, Circuit Board	10	Appelez-nous	-
012	WPW10130081		Circuit Board Assy.   (Replaces: 33001738)	10			$ 277.17
012	M0282005		Locknut   (Replaces: 912077)	10			$ 7.07
013	314531		Connector, Edgeboard	10	Appelez-nous	-
013	33001743		Wire Harness, Main	10	Appelez-nous	-
013	33001879		Wire Harness, Main	16	Appelez-nous	-
013	NLA		Wire Harness, Main	10	Appelez-nous	-
014	WPW10131114		Cover, Display   (Replaces: 22001962)	10			$ 42.79
015	WP489399		Screw, Ground Wire   (Replaces: 211252)	10			$ 6.26
016	215526		Screw, Control Board	10	Appelez-nous	-
017	WPW10247389		Switch Assy., Optic   (Replaces: 22001965)	10		Immediately	$ 104.31
017	NLA		Connector, Edgeboard----na	10	Appelez-nous	-
018	22001361		Connector, Edgeboard	10	Appelez-nous	-
018	22001966		Harness, Sensor Switch	10	Appelez-nous	-
