01 - Control Center Shroud


02 - Control Center


03 - Front


04 - Door


05 - Rear


06 - Tumbler


07 - Gas Valve


08 - Motor Drive


09 - Wiring Information

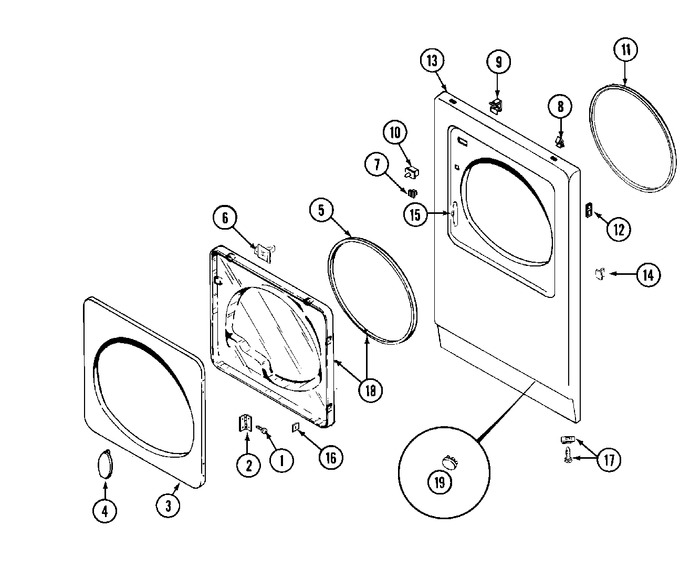

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y314062		Screw, Door Hinge & Panel	10			$ 12.03
002	33001230		Hinge, Door	10			$ 44.75
003	314967		Panel, Outer (wht)	10	Appelez-nous	-
003	NLA		(alm)	10	Appelez-nous	-
004	314939		Handle, Door (wht)	10			$ 32.46
004	314974		(alm)	10	Appelez-nous	-
005	33001192		Seal, Door	10	Appelez-nous	-
006	WP33001305		Strike, Door (w/bracket)   (Replaces: 33001305)	10			$ 2.31
007	LA-1003		Catch, Door (female)   (Replaces: Y304578)	10		Immediately	$ 24.51
008	WP22001650		Fastener, Spring   (Replaces: 212982)	10		Immediately	$ 7.34
009	Y310376		Clip, Cable	10	Appelez-nous	-
010	W10169313		Switch, Door   (Replaces: 33001509)	10		Immediately	$ 29.18
011	314937		Seal, Front Panel	10			$ 5.00
012	NLA		Screw, Plastic	10	Appelez-nous	-
013	NLA		Panel, Front (wht)----na	10	Appelez-nous	-
013	WP98008544		Panel, Fastener   (Replaces: 33001486)	10			$ 11.89
014	NLA		Plug, Door Catch	10	Appelez-nous	-
015	33001176		(alm)	10	Appelez-nous	-
015	33001175		Cover, Hinge Hole (wht)	10	Appelez-nous	-
016	Y313910		Fastener, Inner Door	10	Appelez-nous	-
017	22001496		Screw, Front Panel	10			$ 5.38
018	33001203		Panel, Clear Inner (w/seal)	10	Appelez-nous	-
019	33001614		Plug, Front Panel (wht)	10	Appelez-nous	-
019	33001615		(alm)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
