SELECT A DIAGRAM

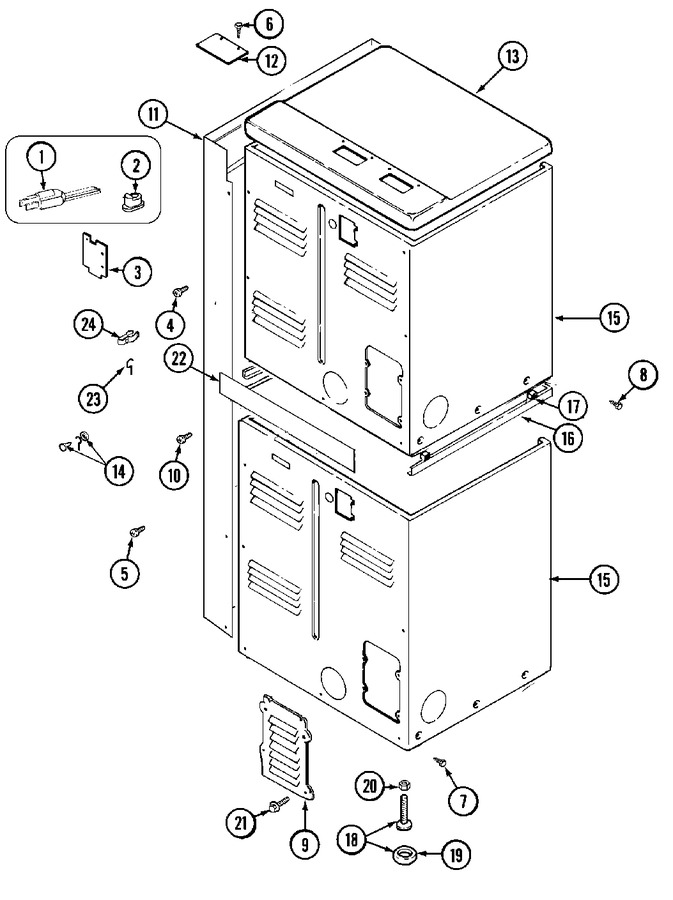

01 - Control Center Shroud


02 - Control Center


03 - Front


04 - Door


05 - Rear


06 - Tumbler


07 - Gas Valve


08 - Motor Drive


09 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	308966		Cord, Power	10	Appelez-nous	-
001	33001284		Cord, Power	10	Appelez-nous	-
001	33001285		Cord, Power	10	Appelez-nous	-
002	211881		Grommet, Power Cord	10	Appelez-nous	-
002	NLA		Grommet, Power Cord	10	Appelez-nous	-
003	Y312905		Cover, Terminal	10	Appelez-nous	-
004	Y313561		Screw, Terminal Cover	10			$ 5.27
005	NLA		Screw, Shroud	10	Appelez-nous	-
006	WP90767		Screw, Top Cover Plate   (Replaces: Y313559)	10		Immediately	$ 7.04
007	213007		Screw, Cabinet	10			$ 10.99
008	NLA		Screw, Spacer Assembly	10	Appelez-nous	-
008	Y310632		Screw, Spacer Assembly	10	Appelez-nous	-
009	WP489128		Screw, Access Panel   (Replaces: 216423)	10			$ 9.79
010	Y313561		Screw, Filler Strip	10			$ 5.27
010	Y310632		Screw, Filler Strip	10	Appelez-nous	-
011	NLA		Shroud, Control (wht)	10	Appelez-nous	-
012	NLA		Plate, Top Cover	10	Appelez-nous	-
013	NLA		Cover, Top (wht)	10	Appelez-nous	-
014	NLA		Screw & Washer Assembly	10	Appelez-nous	-
015	NLA		Cabinet (upr-alm)	10	Appelez-nous	-
015	Y310632		Screw, Cabinet	10	Appelez-nous	-
016	33001302		(wht)	10	Appelez-nous	-
016	NLA		Spacer Assembly (alm)	10	Appelez-nous	-
017	310933		Fastener, Spacer Assembly	10	Appelez-nous	-
018	22003428		Leg, Adjustable (w/nut)---s   (Replaces: Y302699)	10		Immediately	$ 14.41
019	WP210684		Foot, Rubber   (Replaces: 210684)	10		Immediately	$ 14.09
020	WP210385		Nut, Adjustable Leg   (Replaces: 210385)	10			$ 6.26
021	Y312951		Cover, Access	10	Appelez-nous	-
022	NLA		Strip, Filler	10	Appelez-nous	-
023	311155		Ground Wire	10			$ 8.77
024	301548		Clamp, Ground (w/screw)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
