SELECT A DIAGRAM

02 - Control Panel


03 - Door Parts


04 - Functional Parts


05 - Wrapper And Body Parts

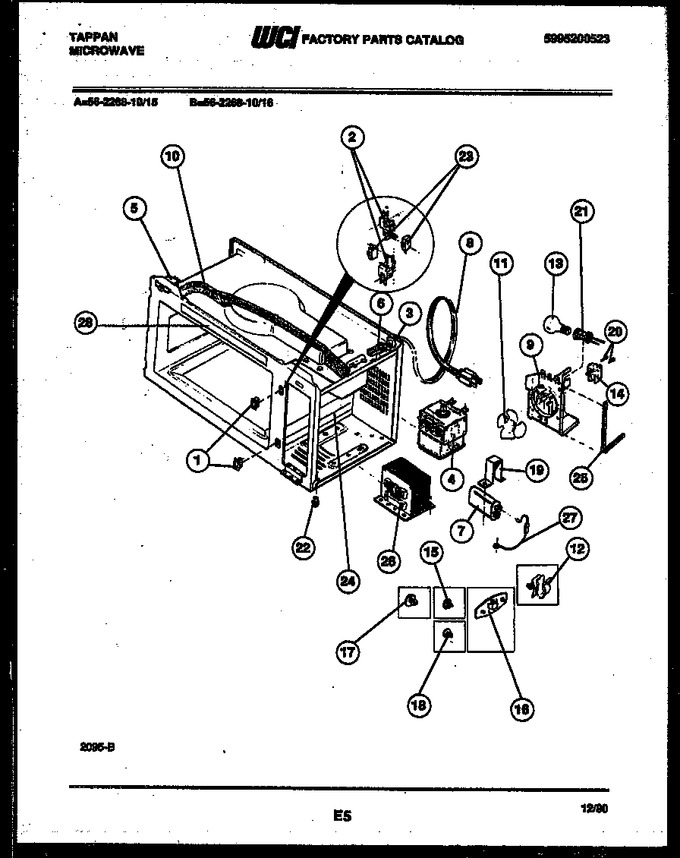

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303212767		Bezel Latch (2)		Appelez-nous	-
2	5303011556		Bracket-switch (2)		Appelez-nous	-
3	5303212769		Bushing-strain Relief/fuse Holder		Appelez-nous	-
4	5303206781		Magnetron		Appelez-nous	-
5	5303201602		Switch-monitor		Appelez-nous	-
6	5303011670		Fuse		Appelez-nous	-
7	5303212773		Capacitor		Appelez-nous	-
8	5303212774		Cord-power		Appelez-nous	-
9	5303212779		Duct-fan		Appelez-nous	-
10	5303212783		Seal, Foam		Appelez-nous	-
11	5303212786		Fan-blade		Appelez-nous	-
12	5303212787		Clamp, Cable		Appelez-nous	-
13	5303212801		Lamp-120v				$ 53.13
14	5303212802		Motor-fan 120v		Appelez-nous	-
15	5303201365		Plug-button (probe)		Appelez-nous	-
16	5303013626		Plug-button, Browner, (2)		Appelez-nous	-
17	5308037664		Plug Button-rack (4)		Appelez-nous	-
18	5308037665		Plug-button Tray (2)		Appelez-nous	-
19	5303013771		Retainer-capacitor		Appelez-nous	-
20	5308014502		Screw-fan Motor (2)		Appelez-nous	-
21	5303212810		Socket-lamp		Appelez-nous	-
22	5303014097		Spacer, Foot, (4)		Appelez-nous	-
23	5303203636		Switch, Interlock		Appelez-nous	-
24	5303212845		Tape-foam Seal Cut To Size		Appelez-nous	-
25	5303017864		Tape-foam Seal Cut To Size		Appelez-nous	-
26	5303212811		Transformer		Appelez-nous	-
27	5303212799		Harness-diode		Appelez-nous	-
28	5303018849		Label Cooking Guide		Appelez-nous	-
*43130	5303017865		Tape-foam Seal Wrapper-right Front Cut To Size		Appelez-nous	-
*43130	5303269846		Rivet-back Of Fan Duct		Appelez-nous	-
*43130	5303212796		Harness-main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
