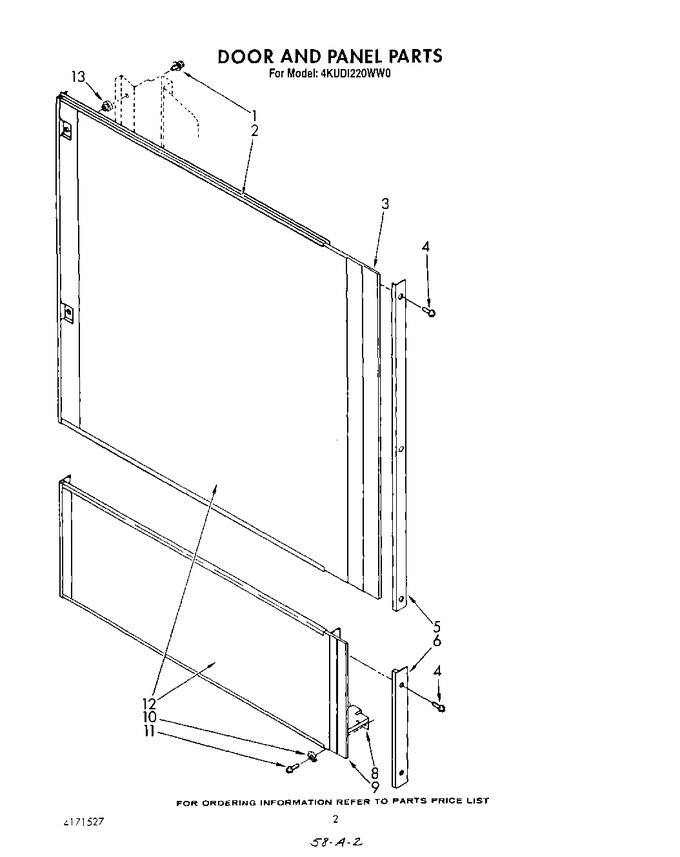

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4162215		Screw		Appelez-nous	-
2	9740467		Upper Mounting Panel Assembly		Appelez-nous	-
3	4171462		Filler (upper Panel)		Appelez-nous	-
4	4171463		Screw (10)		Appelez-nous	-
5	4171497		Side Trim (upper Panel)		Appelez-nous	-
6	4171496		Side Trim (lower Panel)		Appelez-nous	-
8	9740466		Lower Mounting Panel Assembly		Appelez-nous	-
9	4171464		Filler (lower Panel)		Appelez-nous	-
10	4159494		Lock Washer		Appelez-nous	-
11	WP693304		Screw, 10 X 1/2   (Replaces: 4159468)				$ 7.04
12	4162836		Panel Insert Kits (almond/white)		Appelez-nous	-
12	4171534		Panel Insert Kits (almond/black)		Appelez-nous	-
12	4169404		Panel Insert Kits (silver/onyx Black (optional))		Appelez-nous	-
12	4169403		Panel Insert Kits (sand/onyx Black (optional))		Appelez-nous	-
12	4169402		Panel Insert Kits (platinum/toast (optional))		Appelez-nous	-
12	4169400		Panel Insert Kits (stainless Steal (optional))				$ 125.57
12	4162835		Panel Insert Kits (fresh Avocado/coffee (optional))		Appelez-nous	-
12	4171096		Panel Insert Kits (harvest Gold/onyx Black)		Appelez-nous	-
13	4162735		Grommet, Panel Mounting (4)		Appelez-nous	-
