01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Door And Drawer Parts
05 - Internal Oven Parts
06 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:

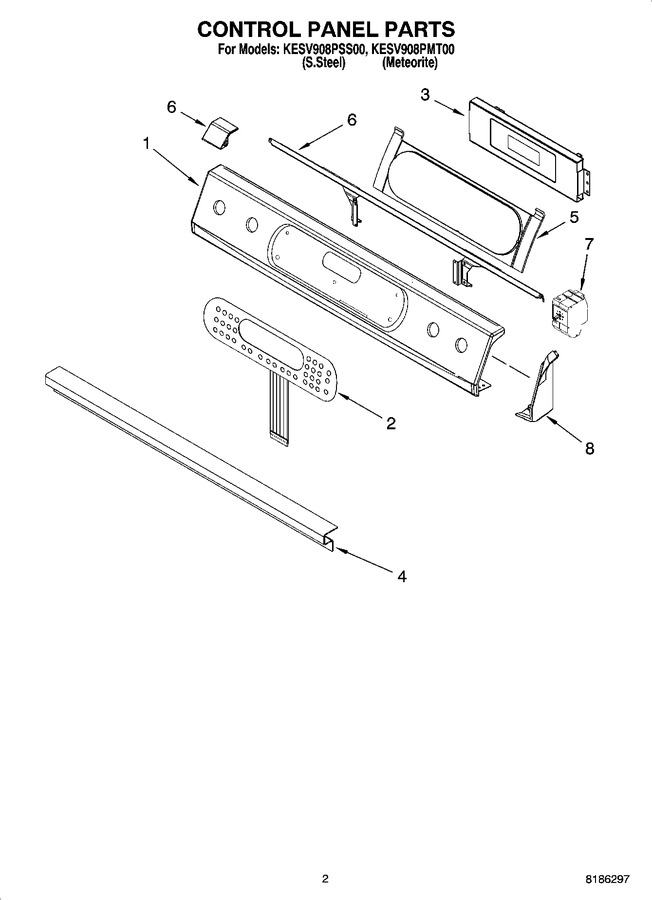

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4453831MT | Control Panel (meteorite) |
|
$ 125.83 | |||||
| 1 | 4453831SS | Control Panel (s.steel) |
|
$ 51.96 | |||||
| 2 | 9761061CM | Membrane Switch (cashmere Metal) |
|
$ 321.65 | |||||
| 2 | 9761061ES | Membrane Switch (etched Stainless) |
|
$ 174.24 | |||||
| 2 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 3 | 9761937 | Control, Interface |
|
- | |||||
| 3 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 4 | 9757119 | Bracket, Console |
|
- | |||||
| 4 | WP3196557 | Screw (3) (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 5 | 9759827 | Insert, Membrane |
|
- | |||||
| 6 | 9759466 | Insert, Console (r.hand) |
|
- | |||||
| 6 | 9759467 | Insert, Console (l.hand) |
|
- | |||||
| 7 | 9757787 | Bracket, Rear (ui) |
|
- | |||||
| 7 | WP486579 | Screw (Replaces: 486579) |
|
$ 6.61 | |||||
| 8 | 9760457MT | Endcap (meteorite Lh) |
|
- | |||||
| 8 | 9760457CM | Endcap (cashmere Metal Lh) |
|
- | |||||
| 8 | 9760456MT | Endcap (meteorite Rh) |
|
- | |||||
| 8 | 9760456CM | Endcap (cashmere Metal Rh) |
|
- | |||||
| 8 | 3196172 | Screw |
|
Immediately | $ 11.55 |
