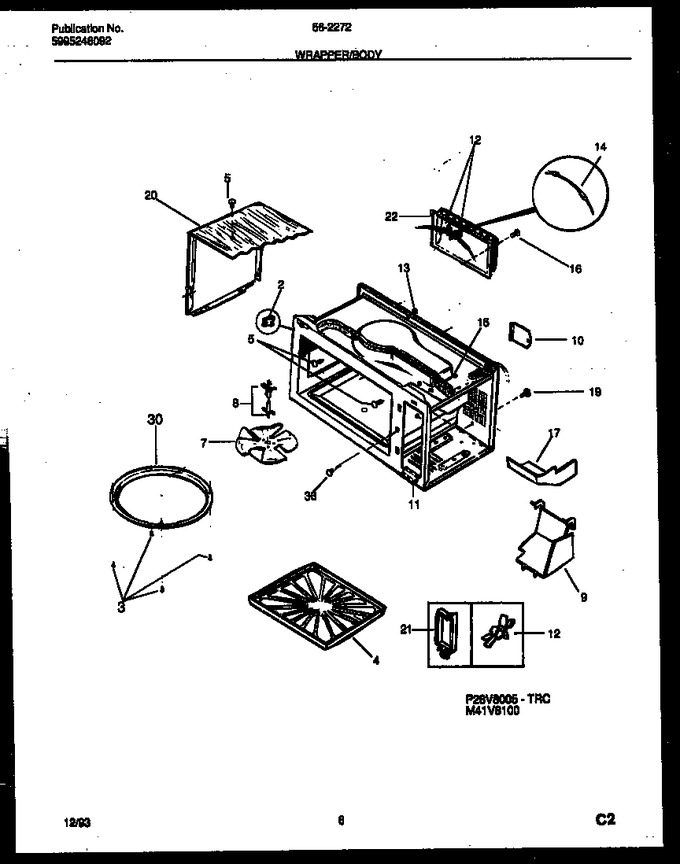

56-2272-10-02 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
2	3203010	Clip, Hinge, (3) (Replaces: 5303012323)			$ 14.89
3	5303013807	Rivet, Accordian, Stirrer Cover, (4)	Appelez-nous	-
4	5303091188	Tray, Glass, Oven	Appelez-nous	-
5	5303291811	Plug-button, Interior White	Appelez-nous	-
5	5303271414	Plug, Button, Black, (2)	Appelez-nous	-
7	5303922051	Frame-door, Black, Service, (if Frame-door Needs To Be R	Appelez-nous	-
7	5303202397	Fan, Stirrer, White	Appelez-nous	-
8	5303922010	Collar-stirrer,incl. Collar,support,washer	Appelez-nous	-
8	5303279373	Hinge-door, Black, (if Hinge Needs To Be Replaced, Item	Appelez-nous	-
9	317000801	Baffle-air	Appelez-nous	-
9	5303051818	Screw, Handle, 8, 18 X 1/2.(3)	Appelez-nous	-
10	5303922104	Cover-door, (includes Tape), (if Cover-door Needs To Be	Appelez-nous	-
10	5303212775	Cover-light	Appelez-nous	-
11	5303270384	Bracket, Cont Panel Sprt	Appelez-nous	-
12	5303212788	Support, Thrm Protector, (2)	Appelez-nous	-
13	5303280263	Bushing	Appelez-nous	-
14	5303212800	Harness-wiring, Fire Protector	Appelez-nous	-
15	5303212803	Nut, Fan Duct			$ 2.10
16	394027600	Screw, Tamper Proof, 8-15(a) X 1/2, (2)	Appelez-nous	-
17	5303273488	Duct-air, Cavity	Appelez-nous	-
19	5303271581	Rivet, Plastic	Appelez-nous	-
20	5303284343	Wrapper, Black	Appelez-nous	-
21	5308037677	Clip, Wires	Appelez-nous	-
22	5303269958	Duct-air, Exhaust	Appelez-nous	-
30	5303200541	Cover, Stirrer, White	Appelez-nous	-
36	5303282074	Plug-button, Plunger, White, Front Liner	Appelez-nous	-
*92882	5303212809	Shield-oven Light, Mylar	Appelez-nous	-
*92882	5303203124	Paint, Touch Up, White	Appelez-nous	-
11A	5303273916	Screw, Bracket Mtg, 8-18(ab) X 3/8, Control Panel, (2)	Appelez-nous	-
20A	317008606	Hang Kit, .8, Canadian (non-illustrated) (Replaces: 317008601)	Appelez-nous	-
20B	5303273263	Screw-wrapper, 8-18 X 12 (non-illustrated)	Appelez-nous	-
