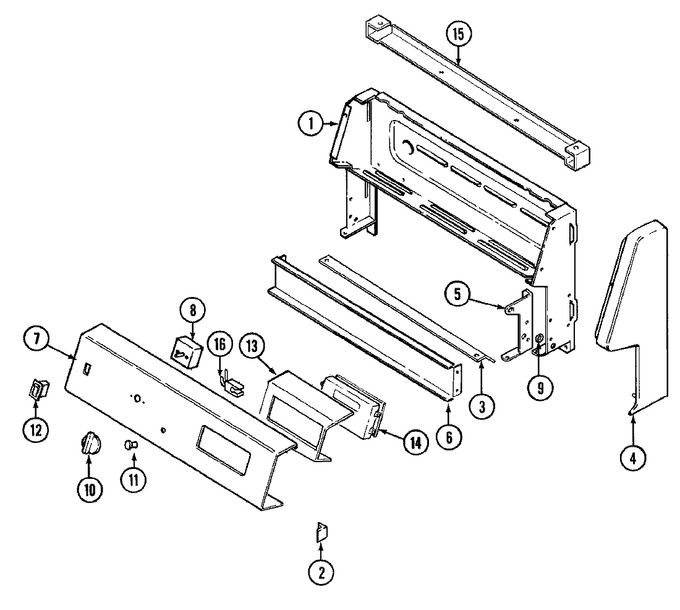

02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74002162 | Housing, Control Panel | 10 |
|
- | ||||
| 2 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 2 | 8010P083-60 | Spacer | 10 |
|
- | ||||
| 3 | 3604F201-80 | Shield, Sight | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 74001352 | End Cap (lt-blk) | 10 |
|
- | ||||
| 4 | 74001355 | End Cap (rt-blk) | 10 |
|
- | ||||
| 5 | 3807F453-51 | Support, Main Top (rt) | 10 |
|
- | ||||
| 5 | 3807F454-51 | Support, Main Top (lt) | 10 |
|
- | ||||
| 5 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 3802F088-51 | Brace, Control Panel | 10 |
|
- | ||||
| 6 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 7 | 74002617 | Panel, Control (blk) | 10 |
|
- | ||||
| 7 | 8270P098-60 | Tape | 10 |
|
$ 5.02 | ||||
| 7 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 8 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 8 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 8 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 9 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 10 |
|
$ 7.68 | ||||
| 10 | 7731P082-60 | Knob, Therm/burner (blk) | 10 |
|
- | ||||
| 11 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 12 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 13 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 13 | 74002618 | Bracket, Control Panel | 10 |
|
- | ||||
| 14 | 74002619 | Clock (blk) | 10 |
|
- | ||||
| 14 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 15 | 4001F064-51 | Extension, Control Panel | 10 |
|
- | ||||
| 15 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 17 | 74001013 | Harness, Control/top | 10 |
|
- | ||||
| 17 | 74002680 | Harness, Sensor | 10 |
|
- | ||||
| 17 | 74002679 | Harness, Control Panel | 10 |
|
- | ||||
| 17 | 74002678 | Harness, Loose Wire | 10 |
|
- | ||||
| 17 | 5175D052-60 | Harness, Burner Box | 10 |
|
- | ||||
| 18 | 16007454 | Manual, Use & Care | 10 |
|
- | ||||
| 19 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
