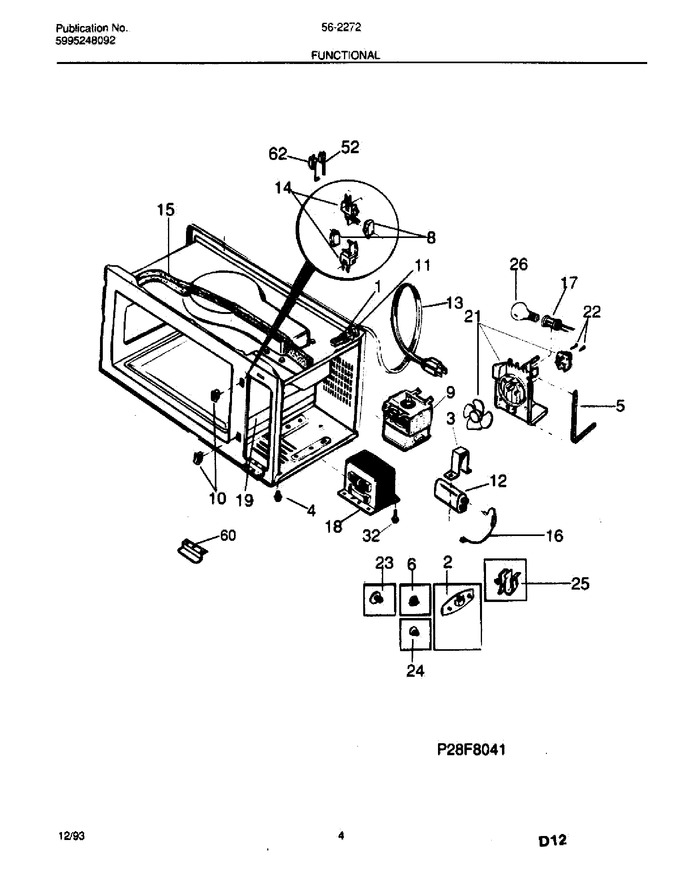

SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Door


05 - Functional Parts


07 - Wrapper


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308037723		Fuse, 15 Amp		Appelez-nous	-
2	5303013626		Plug Button (browner)		Appelez-nous	-
3	5303013771		Retainer-capacitor		Appelez-nous	-
4	5303295314		Spacer, Foot		Appelez-nous	-
5	5303017864		Tape, Foam Seal, 1/4 X 1/4 In., Cut To Size		Appelez-nous	-
6	5303201365		Plug, Button, White. Probe		Appelez-nous	-
8	5303203636		Switch, Interlock		Appelez-nous	-
9	5303206781		Magnetron		Appelez-nous	-
10	5303212767		Bezel-latch		Appelez-nous	-
11	5303212769		Bushing-fuse Holder, Strain Relief		Appelez-nous	-
12	5303212773		Capacitor		Appelez-nous	-
13	317005402		Cord-electric Power, Canadian		Appelez-nous	-
14	317000702		Bracket-switch		Appelez-nous	-
15	5303212783		Seal, Foam		Appelez-nous	-
16	5303212799		Harness And Diode, Hv		Appelez-nous	-
17	5303212810		Socket-light/lamp, Oven, 120 V		Appelez-nous	-
18	317016901		Transformer, 120 V		Appelez-nous	-
19	5303212845		Seal, Foam		Appelez-nous	-
21	5303922053		Motor-fan,120v,incl.motor,fan Duct,fan Blade,in.8kit)		Appelez-nous	-
22	317004703		Screw, Thread Forming, 8-32 X 1/2, Fan Motor		Appelez-nous	-
23	5308037664		Plug-button, White, Rack		Appelez-nous	-
24	5308037665		Plug-button, White, Tray		Appelez-nous	-
25	5303212787		Clamp, Cable		Appelez-nous	-
26	5303272172		Lamp, 25 W, 120 V		Appelez-nous	-
32	5303013944		Screw, Hx Serr Wshr Hd, 1/4-20 X 1/2, Tranformer		Appelez-nous	-
52	317005104		Switch-door Sensor		Appelez-nous	-
60	5303283612		Bracket, Angle, Front Right Bot		Appelez-nous	-
60	5303017863		Screw, Cr Truss Head, 6-18(a) X 1/2, Angle Bracket		Appelez-nous	-
62	317005103		Switch-monitor		Appelez-nous	-
	317000329		Harness-wiring, Main		Appelez-nous	-
