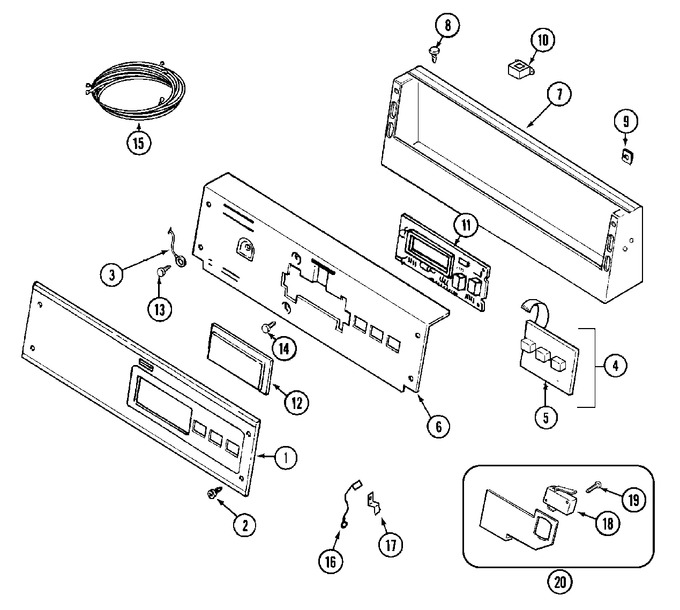

01 - Control Panel
02 - Cabinet-front
03 - Door
04 - Cabinet-rear
05 - Gas Valve
06 - Motor Drive
07 - Wiring Information
08 - Tumbler
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Panel, Control | 10 |
|
- | ||||
| 002 | WPW10131119 | Screw, Control Panel (Replaces: 215506) | 10 |
|
$ 6.26 | ||||
| 003 | 22001959 | Wire, Ground | 10 |
|
- | ||||
| 004 | W10756178 | Screw, Switch (Replaces: 215527) | 10 |
|
$ 5.39 | ||||
| 004 | 33002165 | Control Switch Assembly | 10 |
|
- | ||||
| 005 | WPW10424308 | Pushbutton, Control Switch (Replaces: 215517) | 10 |
|
Immediately | $ 18.38 | |||
| 006 | 22001511 | Deflector, Water (w/adhesive) | 10 |
|
- | ||||
| 006 | 33001956 | Bracket, Back (wht) | 10 |
|
- | ||||
| 006 | 33002523 | Bracket, Back (wht) | 29 |
|
- | ||||
| 007 | 22003101 | Console (wht) | 29 |
|
- | ||||
| 007 | 33001957 | Console (wht) | 10 |
|
- | ||||
| 008 | WP489128 | Screw, Console (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 009 | 215003 | Clip, Screw | 10 |
|
- | ||||
| 010 | 211251 | Screw, Transformer | 10 |
|
- | ||||
| 010 | 22001419 | Nut (elastic) | 10 |
|
- | ||||
| 010 | 22002139 | Transformer (step-down Comm) | 10 |
|
- | ||||
| 011 | 33001204 | Standoff, Circuit Board | 10 |
|
- | ||||
| 011 | WPW10130081 | Board Assy., Circuit (Replaces: 33001839) | 10 |
|
$ 277.17 | ||||
| 011 | M0282005 | Locknut (Replaces: 912077) | 10 |
|
$ 7.07 | ||||
| 012 | WPW10131114 | Cover, Display (Replaces: 22001962) | 10 |
|
$ 42.79 | ||||
| 013 | WP489399 | Screw, Ground Wire (Replaces: 211252) | 10 |
|
$ 6.26 | ||||
| 014 | 215526 | Screw, Control Board | 10 |
|
- | ||||
| 015 | 33001953 | Wire Harness, Main | 10 |
|
- | ||||
| 015 | 33001973 | Wire Harness, Main | 10 |
|
- | ||||
| 015 | 33002090 | Harness, Service | 10 |
|
- | ||||
| 015 | 33002168 | Wire Harness, Main | 10 |
|
- | ||||
| 016 | WPW10133264 | Lock, Access Door (Replaces: Y206081) | 10 |
|
$ 125.12 | ||||
| 017 | W11165684 | Tab, Locking (Replaces: 33002092) | 10 |
|
$ 8.20 | ||||
| 018 | 22002367 | Switch, Sensor | 10 |
|
- | ||||
| 019 | 22002368 | Screw----na | 10 |
|
- | ||||
| 020 | 33002093 | Bracket Assy., Switch | 10 |
|
- |
