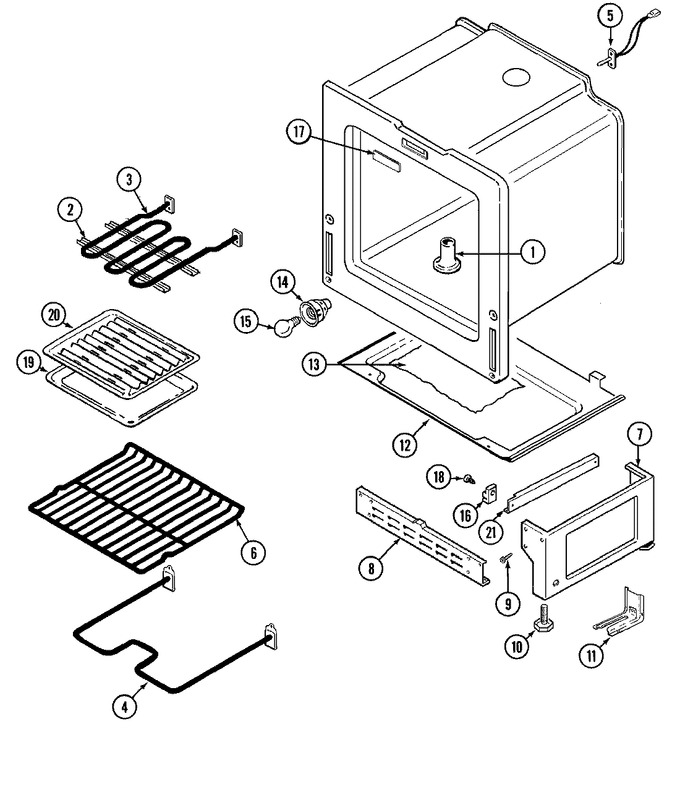

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 8026P019-60 | Tube, Vent | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 3807F389-45 | Support, Element | 10 |
|
- | ||||
| 3 | WPY04000059 | Element, Broil (Replaces: Y04000059) | 10 |
|
$ 159.00 | ||||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | WP74003019 | Element, Bake (Replaces: Y04000058) | 10 |
|
Immediately | $ 51.10 | |||
| 5 | 12001656 | Sensor, Oven (Replaces: 7430P010-60) | 10 |
|
Immediately | $ 39.55 | |||
| 6 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 10 |
|
$ 65.15 | ||||
| 7 | 74003016 | Pedestal, Side | 11 |
|
- | ||||
| 7 | 4020W017-80 | Pedestal, Sides | 10 |
|
- | ||||
| 8 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | W11665456 | Leg, Leveling (Replaces: 74002373) | 11 |
|
Immediately | $ 25.30 | |||
| 10 | 74001311 | Leg, Leveling | 10 |
|
- | ||||
| 11 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 10 |
|
Immediately | $ 4.69 | |||
| 11 | WP7101P485-60 | Screw (Replaces: 7101P344-60) | 10 |
|
$ 26.33 | ||||
| 12 | 3804F112-51 | Retainer, Insulation | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 8312P058-60 | Foil, Insulation Retainer | 10 |
|
- | ||||
| 14 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 10 |
|
Immediately | $ 66.10 | |||
| 15 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 16 | 8004P033-60 | Support, Drawer | 10 |
|
- | ||||
| 17 | 7718P013-60 | Cover, Door Lock | 10 |
|
- | ||||
| 18 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 10 |
|
Immediately | $ 6.98 | |||
| 19 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 20 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 21 | 3406F028-51 | Runner, Drawer | 10 |
|
- |
