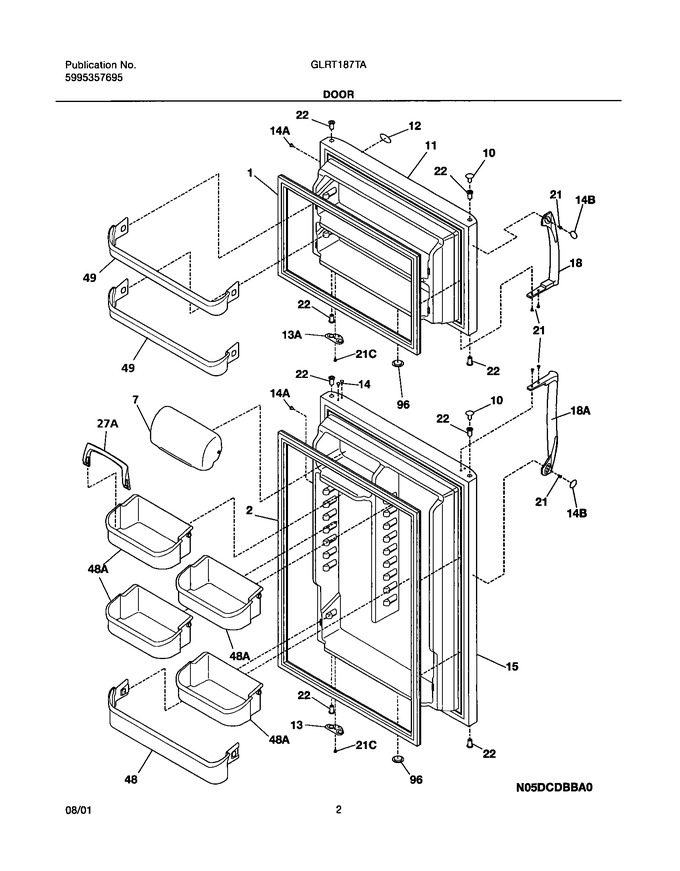

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240338313 | Door-dairy (Replaces: 240338303) |
|
Immediately | $ 80.80 | ||||
| 10 | 240381302 | Plug-button,hinge Brg Hole ,bisque ,(2) |
|
$ 19.06 | |||||
| 11 | 240409902 | Panel-frzr Door,bisque ,complete Assy |
|
$ 355.09 | |||||
| 12 | 240449702 | Nameplate,bisque |
|
- | |||||
| 13 | 240312423 | Door Stop,bisque ,ref (Replaces: 240312407) |
|
$ 12.13 | |||||
| 14 | 218915704 | Plug-button,bisque |
|
- | |||||
| 15 | 240410102 | Panel-refr Door,bisque ,complete Assy |
|
- | |||||
| 18 | 240339204 | Handle-door,bisque Refr-lh/frzr-rh |
|
- | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 (Replaces: 240383401) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color ,(8) (Replaces: 240311201) |
|
Immediately | $ 7.59 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 52.37 | ||||
| 49 | 240495805 | Bin-door,clear ,frzr (Replaces: 240337802) |
|
$ 50.94 | |||||
| 96 | 240345503 | Plug-foam Hole,white |
|
- | |||||
| 13A | 240312408 | Door Stop,bisque ,frzr |
|
- | |||||
| 14A | 240428302 | Plug-button,screw Type ,bisque |
|
- | |||||
| 14B | 240383602 | Plug-button,bisque ,door Handle |
|
$ 8.84 | |||||
| 18A | 240339209 | Handle-door,bisque Refr-rh/frzr-lh |
|
- | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 27A | 240396102 | Retainer,tall Bottle |
|
$ 19.13 | |||||
| 48A | 241808201 | Bin-door,gallon (Replaces: 240430301) |
|
Immediately | $ 79.97 | ||||
| F1 | 241872503 | Gasket-frzr Door,white ,magnetic (Replaces: 240370905) |
|
Immediately | $ 137.66 | ||||
| F2 | 242193213 | Gasket-refr Door,white ,magnetic (Replaces: 240370906) |
|
Immediately | $ 190.22 |
