Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 33002633 Cover, Top (wht-as Pk) 10 Appelez-nous -
001 33002634 Cover, Top (bsq-as Pk) 10 Appelez-nous -
002 22001959 Wire, Ground 10 Appelez-nous -
003 WP489128 Screw, Ground Wire   (Replaces: 210186) 10 Special Order $ 9.79

004 22003644 Cabinet Assy. (bsq As Pk) 10 Appelez-nous -
004 NLA Cabinet Assy (wht-as Pk) 10 Appelez-nous -
005 213280 Front Panel Bracket/fastener 10 Appelez-nous -
006 22002049 Clip 10 Special Order $ 8.40

007 22003298 Retainer, Wire 10 Special Order $ 7.71

008 33002190 Screw (no.10-3/8``) 10 Appelez-nous -
009 Y310376 Clip, Wire Harness 10 Appelez-nous -
010 213007 Screw, Cabinet 10 Special Order $ 10.99

011 22002239 Clip, Lower Front Panel 10 Special Order $ 5.84


    View Diagram in Separate Window     Print Icon   Print Part List

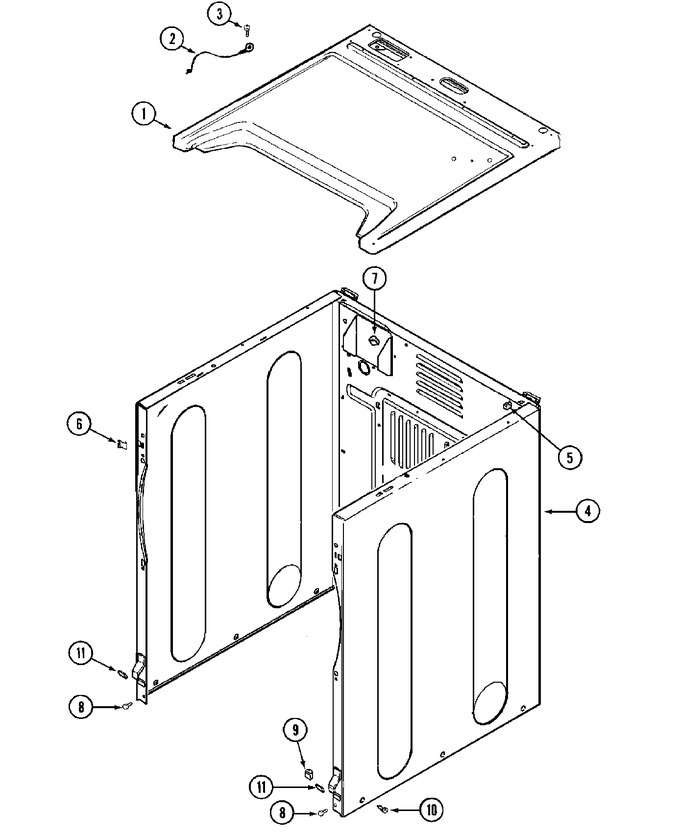

Diagram for MDG16CSBWQ
