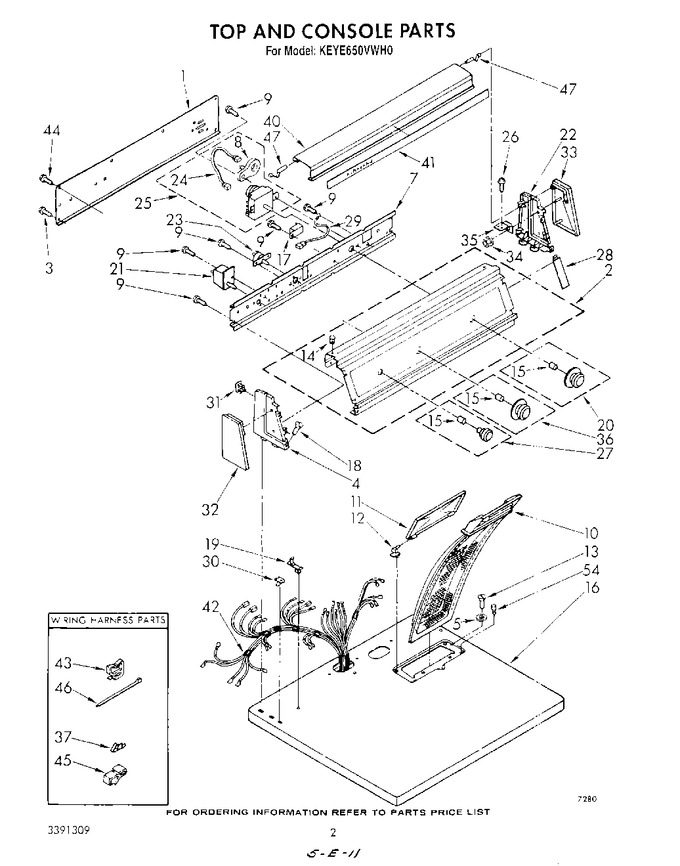

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3388889		Panel, Rear Console		Appelez-nous	-
2	3390741		Panel, Control		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.47
4	388503		Cap, End (l.h.)		Appelez-nous	-
5	237446		Washer		Appelez-nous	-
7	3390619		Bracket, Control		Appelez-nous	-
8	279872		Resistor   (Replaces: 3388706)				$ 67.45
9	WP3390631		Screw, Ground   (Replaces: 339554)				$ 7.04
10	WP349639		Screen, Lint   (Replaces: 693845)			Immediately	$ 33.49
11	691205		Cover, Lint Screen		Appelez-nous	-
12	WPW10044480		Hinge, Cover (l.h.)   (Replaces: 691194)				$ 6.95
12	WPW10044470		Hinge, Cover (r.h.)   (Replaces: 691193)				$ 6.95
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
14	387887		Plug, Latch (3)		Appelez-nous	-
15	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.03
16	697682		Top (harvest Wheat)		Appelez-nous	-
16	697680		Top (white)		Appelez-nous	-
16	697681		Top (almond)		Appelez-nous	-
16	697684		Top (platinum)		Appelez-nous	-
16	697683		Top (toast)		Appelez-nous	-
17	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 114.90
18	WP388326		Screw, 8-18 (2)   (Replaces: 64211)				$ 7.30
19	358473		Stop, Push-in (2)				$ 5.84
20	3389725		Knob, Timer		Appelez-nous	-
21	348314		Switch, Push To Start		Appelez-nous	-
22	388504		Cap, End (r.h.)		Appelez-nous	-
23	696887		Switch, Temperature 3-position		Appelez-nous	-
24	696098		Wire, Jumper		Appelez-nous	-
25	695760		Timer & Resistor 60 Hz.				$ 181.28
26	310629		Screw, 8-32 X 3/8		Appelez-nous	-
27	3390054		Knob, Push To Start		Appelez-nous	-
28	3349338		Spacer, Console (2)		Appelez-nous	-
29	690853		Wire, Ground		Appelez-nous	-
30	358472		Nut, Push-in (2)		Appelez-nous	-
31	689559		Clip, Push-on (4)		Appelez-nous	-
32	3350431		Trim, Endcap (l.h.)		Appelez-nous	-
33	3350432		Trim, Endcap (r.h.)		Appelez-nous	-
34	388744		Nut, No.10 Thread		Appelez-nous	-
35	3349048		Bracket, End Cap (2)		Appelez-nous	-
36	3351727		Knob, Temperature Control		Appelez-nous	-
37	60279		Terminal		Appelez-nous	-
40	3391876		Cover, Light (includes Illus. No.41)		Appelez-nous	-
41	3388191		Insert, Lamp Cover		Appelez-nous	-
42	3390905		Harness, Wiring		Appelez-nous	-
43	688412		Clip, Harness (rear Bulkhead Area)		Appelez-nous	-
44	WP489069		Screw, Hex Washer Head   (Replaces: 693994)			Immediately	$ 7.07
45	689180		Clip, Harness Retainer (door Switch Wires)		Appelez-nous	-
46	WPW10339879		Tie, Wire (console Harness Area)   (Replaces: 685963)				$ 7.11
47	3347112		Hinge, Lamp Cover		Appelez-nous	-
54	297535		Bumper, Lint Lid		Appelez-nous	-
	LIT3389704		Instructions, Installation		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	LIT3388652		Label, Operating Instructions		Appelez-nous	-
	LIT3387333		Use & Care Guide		Appelez-nous	-
	LIT3387320		Guide, Dryer		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	285365		Toast		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	261890		Harvest Wheat		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	285368		Platinum (uncut)		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	261891		Harvest Wheat (uncut)		Appelez-nous	-
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	LIT3391023		Wiring Diagram		Appelez-nous	-
	LIT3391309		List, Service Parts		Appelez-nous	-
