01 - Top And Console Parts

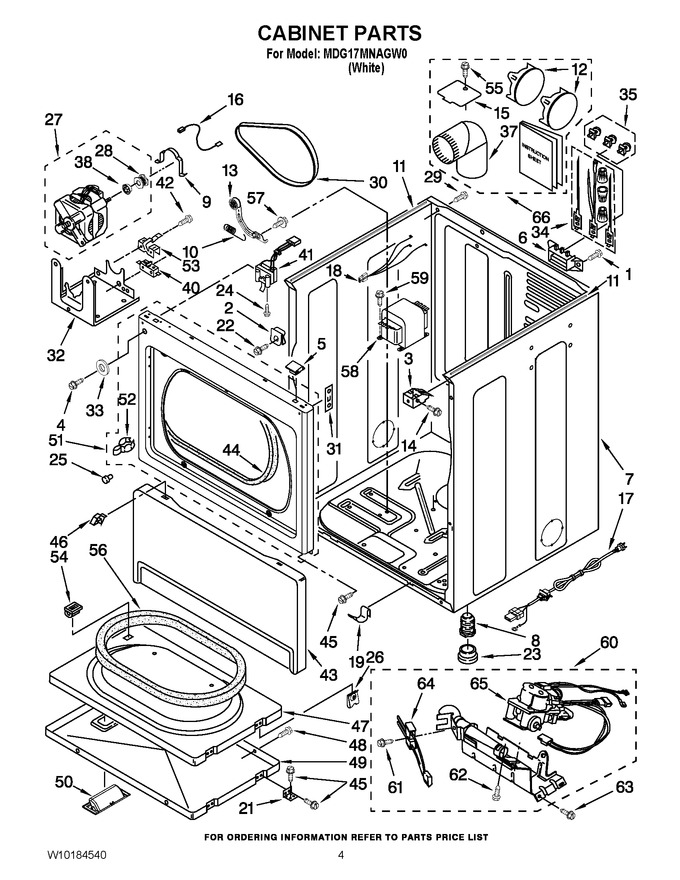

02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10096909 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 2 | WPW10131123 | Nut, No.8 U Type (Replaces: W10131123) |
|
$ 6.94 | |||||
| 3 | 3391846 | Clip, Front Panel |
|
$ 19.04 | |||||
| 4 | WP3400077 | Screw, 10-16 X 1/2 (Replaces: 3400077) |
|
$ 6.25 | |||||
| 5 | WP345670 | Lock, Top (Replaces: 345670) |
|
Immediately | $ 6.93 | ||||
| 6 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 20.72 | |||||
| 7 | W11417441 | Cabinet (Replaces: 8310656) |
|
$ 377.29 | |||||
| 8 | 49621 | Foot, Dryer (plastic) (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 22.11 | ||||
| 11 | WP8318396A | Foam-seal (Replaces: 8318396) |
|
$ 34.04 | |||||
| 12 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 68.99 | ||||
| 13 | W10837240 | Idler Assembly (Replaces: W10118754) |
|
Immediately | $ 32.20 | ||||
| 14 | W10223793 | Screw, 10-16 X 1 |
|
- | |||||
| 15 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.06 | |||||
| 16 | 3394081 | Wire, Belt Switch |
|
$ 37.57 | |||||
| 17 | W10207854 | Cord, Power |
|
- | |||||
| 18 | W10190549 | Jumper, Transformer |
|
- | |||||
| 19 | WP297092 | Clip (Replaces: 297092) |
|
Immediately | $ 7.42 | ||||
| 21 | W11175815 | Hinge And Pin (Replaces: 3389247) |
|
$ 73.27 | |||||
| 22 | WPW10131119 | Screw, 8-18 X 5/16 (Replaces: W10131119) |
|
$ 6.26 | |||||
| 23 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.04 | |||||
| 24 | W10080540 | Screw, 6-20 X 7/8 |
|
- | |||||
| 25 | 693152 | Bumper |
|
$ 9.86 | |||||
| 26 | 3389249 | Nut, ``u`` |
|
- | |||||
| 27 | W10416573 | Motor Assembly (50 Hz.) (Replaces: 3404470) |
|
$ 214.97 | |||||
| 28 | 3402548 | Pulley |
|
- | |||||
| 29 | W10850756 | Screw, 10-32 X 1/2 (Replaces: 8533974) |
|
$ 6.98 | |||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 39.60 | ||||
| 31 | WP3390902 | Clip, Door Hinge (2) (Replaces: 3390902) |
|
$ 10.00 | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 120.23 | |||||
| 33 | W10223794 | Washer |
|
- | |||||
| 34 | 279318 | Terminal, Brass & Tinned (3) (includes Ill. 35) |
|
Immediately | $ 90.89 | ||||
| 35 | 279393 | Terminal Block Screw Kit ( For Terminal Block) |
|
Immediately | $ 42.63 | ||||
| 37 | 279731 | 4``-90 Elbow |
|
- | |||||
| 38 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 40 | WP8318457 | Switch-belt (Replaces: 8318457) |
|
$ 37.88 | |||||
| 41 | WPW10237959 | Door Switch Assembly (Replaces: W10237959) |
|
Immediately | $ 50.08 | ||||
| 42 | W10118188 | Screw |
|
- | |||||
| 43 | WP3406797 | Panel, Toe (Replaces: 697215) |
|
$ 214.50 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 45 | W10080310 | Screw, 8-18 X 1/2 |
|
- | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 47 | 280083 | Door, Rear (Replaces: 3392563) |
|
$ 258.32 | |||||
| 48 | W10080300 | Screw, 8-18 X 3/8 |
|
- | |||||
| 49 | W11663440 | Door, Front (Replaces: 3387872) |
|
$ 233.43 | |||||
| 50 | W11209427 | Handle, Door (Replaces: W10116360) |
|
Immediately | $ 68.18 | ||||
| 51 | 3393081 | Front Panel |
|
- | |||||
| 52 | W10080240 | Strike, Door |
|
- | |||||
| 53 | W10854043 | Lever-switch (Replaces: W10083220) |
|
$ 26.10 | |||||
| 54 | 279570 | Catch, Door Assembly (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 55 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 56 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 117.54 | |||||
| 57 | W10080670 | Screw |
|
- | |||||
| 58 | W10851673 | Transformer (Replaces: 3977633) |
|
$ 357.83 | |||||
| 59 | W11676450 | Screw, 10-24 X 3/8 (Replaces: W10080740) |
|
$ 12.65 | |||||
| 60 | W10096909 | Burner Assembly 50 Hz. (refer To Page 8 & 9 For Further Breakdown) |
|
- | |||||
| 61 | WPW10366705 | Screw, 8-32 X 5/8 (Replaces: 3393909) |
|
$ 6.75 | |||||
| 62 | WP693995 | Screw, 8-18 X 3/8 (Replaces: W10080630) |
|
Immediately | $ 6.47 | ||||
| 63 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 64 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 65 | WP8281918 | Valve Gas 50 Hz. (complete) (Replaces: 8281918) |
|
$ 207.73 | |||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 | ||||
| NI | W10628146 | 10a Cord Adapters (european) (Replaces: W10223809) |
|
$ 107.05 | |||||
| NI | W10628146 | 10a Cord Adapters (austrailian) (Replaces: W10223804) |
|
$ 107.05 | |||||
| NI | W10153836 | 10a Cord Lock |
|
- | |||||
| NI | N/P | (parts Not Shown) |
|
- | |||||
| NI | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 68.99 | ||||
| NI | W10223807 | 10a Cord Adapters (british) |
|
- |
