SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts

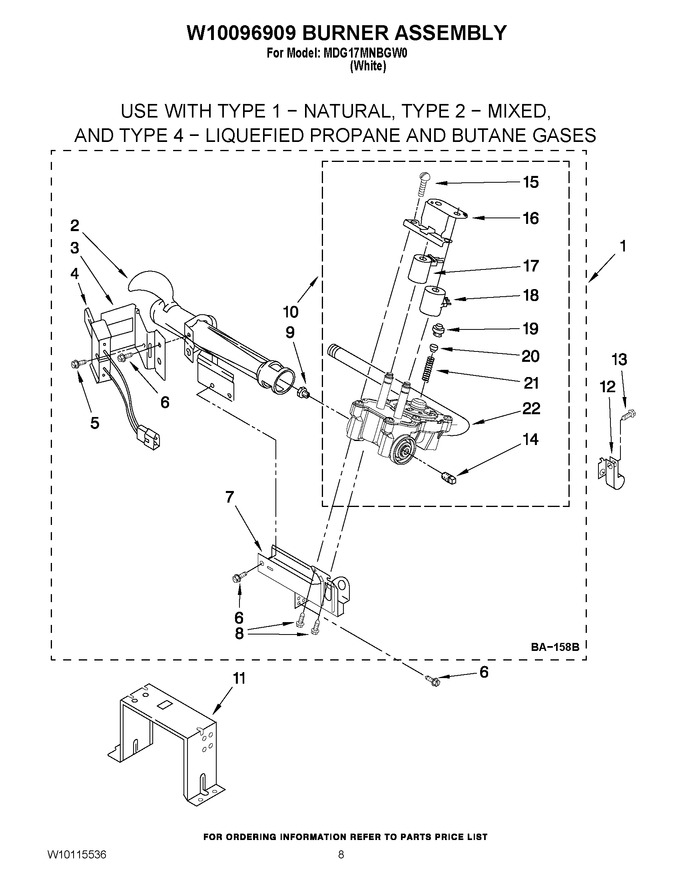

04 - W10096909 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096909		Burner Assembly 60 Hz. (type 1 & 2)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 23.33
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
5	WPW10366705		Screw & Washer (8-32 X 5/8)   (Replaces: W10080730)				$ 6.75
6	W10080320		Screw, 10-16 X 1/2		Appelez-nous	-
7	3389871		Base, Burner				$ 71.36
8	WP693995		Screw, 8-18 X 3/8 (3)   (Replaces: W10080630)			Immediately	$ 6.47
9	234660		Orifice, Burner Type 1				$ 4.42
10	WP8281918		Valve, Gas 60 Hz. (complete) (includes Pipe & Illus. No. 7 )   (Replaces: 8281918)				$ 207.73
11	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
12	3978776		Clamp, Pipe		Appelez-nous	-
13	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
14	W10295523		Plug, Pipe		Appelez-nous	-
15	694421		Screw, 8-32 X 1/2		Appelez-nous	-
16	694538		Bracket, Coil				$ 72.05
17	WP307930		Coil, 50 Hz. (2 Terminal)(main)   (Replaces: 695297)				$ 95.14
18	WPY307931		Coil, 50 Hz. (split) (3 Terminal) (pilot Position)   (Replaces: 695298)				$ 104.11
19	WP694424		Leak, Limiter   (Replaces: 694424)				$ 31.11
20	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.26
21	WP694422		Spring, Regulator   (Replaces: 694422)				$ 21.84
22	W10097610		Pipe, Gas Supply		Appelez-nous	-
NI	W10571757		Conversion Kit (type 1 And 2) To Type (4) L.p.g.   (Replaces: W10233219)				$ 32.40

    View Diagram in Separate Window       Print Part List
