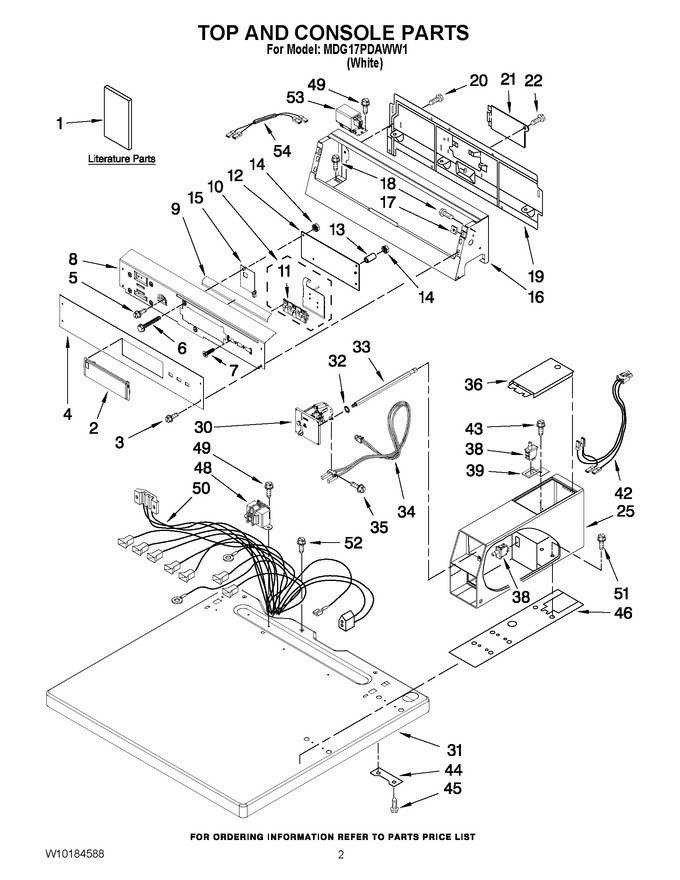

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10135231 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10184588 | Repair Parts List |
|
- | |||||
| 1 | W10183571 | Tech Sheet |
|
- | |||||
| 1 | W10184578 | Instructions Installation |
|
- | |||||
| 2 | WPW10131114 | Cover, Display (Replaces: W10131114) |
|
$ 42.79 | |||||
| 3 | WPW10131119 | Screw (Replaces: W10131119) |
|
$ 6.26 | |||||
| 4 | W10135181 | Facia-overlay |
|
$ 125.73 | |||||
| 5 | WP489128 | Screw (Replaces: W10142728) |
|
$ 9.79 | |||||
| 6 | W11117300 | Screw (Replaces: W10137322) |
|
- | |||||
| 7 | W10756178 | Screw (Replaces: W10140652) |
|
$ 5.39 | |||||
| 8 | W10124214 | Bracket, Control |
|
- | |||||
| 9 | W10133515 | Deflector Switch Assembly |
|
- | |||||
| 10 | WPW10135233 | Assembly, Push Button & Switch (Replaces: W10135233) |
|
$ 168.34 | |||||
| 11 | WPW10424308 | Push Button (Replaces: W10131113) |
|
Immediately | $ 18.38 | ||||
| 12 | WPW10130081 | Control Board (Replaces: W10130081) |
|
$ 277.17 | |||||
| 13 | W11117166 | Spacer (Replaces: W10133514) |
|
- | |||||
| 14 | WPW10139046 | Nut 6-32 (Replaces: W10139046) |
|
$ 7.91 | |||||
| 15 | W10161476 | Shield, Probing |
|
$ 70.65 | |||||
| 16 | W10231471 | Console (Replaces: W10205153) |
|
- | |||||
| 17 | WPW10131123 | Nut, No.8 U Type (Replaces: W10131123) |
|
$ 6.94 | |||||
| 18 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 6.75 | |||||
| 19 | W10177313 | Panel, Rear (upper) |
|
- | |||||
| 20 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 21 | W10819767 | Cover, Terminal Box (Replaces: 8317340) |
|
- | |||||
| 22 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 7.04 | ||||
| 25 | WPW10529176 | Meter Case (Replaces: W10136645) |
|
$ 273.48 | |||||
| 30 | WPW10133242 | Coin Drop Assy. (Replaces: W10133242) |
|
$ 126.51 | |||||
| 31 | WPW10136707 | Top (Replaces: W10136707) |
|
$ 320.56 | |||||
| 32 | W11170663 | Washer (Replaces: W10068270) |
|
$ 3.89 | |||||
| 33 | WPW10137319 | Hex Bar Bolt (Replaces: W10137319) |
|
$ 73.17 | |||||
| 34 | WPW10247389 | Coin Optic Sensor Assembly (Replaces: W10130178) |
|
Immediately | $ 104.31 | ||||
| 35 | WP3395530 | Screw (Replaces: W10142655) |
|
$ 6.93 | |||||
| 36 | W11283272 | Door, Service (Replaces: 3351136) |
|
$ 95.29 | |||||
| 38 | WPW10131838 | Switch-vault & Service Door (Replaces: W10131838) |
|
$ 21.52 | |||||
| 39 | W11204533 | Bracket, Service Door (Replaces: W10133508) |
|
- | |||||
| 42 | W10847806 | Harness Wire Sensor Switch (Replaces: W10139456) |
|
$ 102.42 | |||||
| 43 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 6.75 | |||||
| 44 | 3347825 | Plate, Mounting |
|
- | |||||
| 45 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 46 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 48 | WPW10131839 | Transformer 120 To 22.5 Vac. (Replaces: W10131839) |
|
Immediately | $ 120.20 | ||||
| 49 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 50 | W10130190 | Harness, Main |
|
Immediately | $ 281.21 | ||||
| 51 | W11715721 | Screw (Replaces: 3349065) |
|
$ 6.41 | |||||
| 52 | W11676450 | Screw (Replaces: 3400000) |
|
$ 12.65 | |||||
| 53 | WPW10367632 | Rfi-filter Cpl. (Replaces: 8540229) |
|
$ 110.00 | |||||
| 54 | W10175650 | Jumper-line Filter |
|
- |
